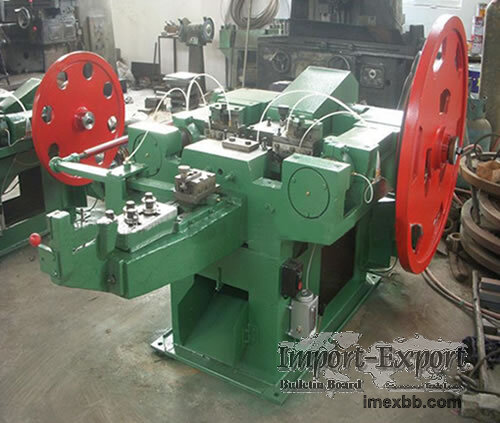

Coil Screw Nails Making Machine

Cnow supplies wire drawing machine, wire nails making machine, nails polishing
machine, rolling machine and coiling devices of nails.
Collated Wire Nails with Screw Shanks
Generally there are five steps for coiled screw nails production:
Wire drawing for nails;
Nails making;
Polishing of nails;
Rolling of nails rolling;
Coiling of nails.
We supply related machines and devices for each steps to fulfill the
production.

Features of Cnow coiled nails (screwed shanks) making machines:
1 .Both iron wire and the new steel rod can be used to make nails.
2 .This nails making machine can feed the materials automatically.
3 .This nails machine has the features of high speed, low noise, less impact.
4. All the main components (shaft, cams and gear) are made of quality steel.
5. The coiled wire nails made by the machine are straight, the point of the
nails will be sharp and symmetrical, the nails cap will be round, every nail
will be perfect.
Popular screwed coil nails specification our machine is used to produce:
Commodity: Coil Screwed Nails or coil nails with screwed shanks
Nails Diameter: 2.1 mm to 3.3 mm
Nails length: from 30 mm to 130 mm
The degree of all coil nails: 16 degree
Pitch:
The pitch is 8mm for the coil nails with diameter ranging from 2.3mm to 2.8mm.
The pitch is 6.8mm for the coil nails with diameter ranging from 2.1mm and
2.2mm
Coils: About 300 nails to 400 nails in each coil

Surface coating of the coiled nails: White for the half of nails and other half
in yellow.
