Coil-Fed Punching Machine

The coil fed punching machines is widely applied in steel furniture, electrical
cabinets, elevator, etc. industries. Which can be combined with laser cutting,
panel bender, Robert loading and unloading system, can realize the 24 hours
unmanned processing and the electricity consumption only need 1 degree/hour. This
sheet metal slitting machine is the complete solution for coil sheets. Including
de-coiling system, levelling system, thick turret punching and slitting system.If
you need the higher productivity, less electric consumption and less cost on
materials and labors. This is your best choice.

REMCOR coil-sheet fed punching or shearing line is a fully automated punching
solution for metallic coils. Which can realize the 24 hours unmanned production.
It is capable of handling coils of 300 – 1500 mm in width, up to 9 ton in weight.

Features of Coil-Fed Punching Machine
24 hours unmanned processing, From the de-coiling, feeding, leveling, feeding,
thick turret punching, slitting the whole process can be done with our system
continuously. Realize the real 24 hours unmanned processing. The traditional
processing needs different systems and a numeral labor to handle the machine
together with loading and unloading. Different devices have different beats and
lead a lot of waste on labors.

Higher productivity, only need to monitor the system, can realize the 24 hours
continuous automatic manufacturing. Continous processing from the raw coil
material to the final profile, there is no waste of time in loading and blanking
compared with traditional forming lines. 2 times faster than traditional
technologies.

Higher Flexibility, Multiple combination with standard die bases and diverse die
tools, one-to-one correspondence between products and molds. Shorter mold changing
time.

More chances for automation, It is available for combining with laser cutting
system, panel bender system, and Robert loading and unloading system, which can
leave more space for automation. With punching station unworking, and the other
station working, it is equivalent to a leveling line, can provide plates for
turret punching, single platform laser cutting machines, automatic panel benders,
etc.

Parameter Details of Coil-Fed Punching Machine

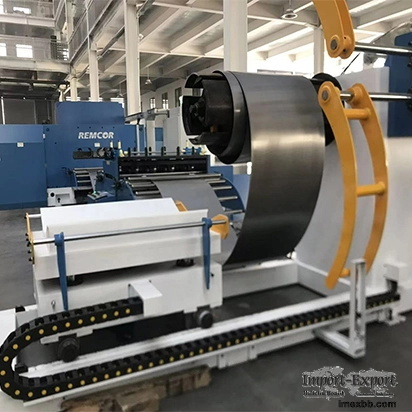

Coil loading - Trolley - Decoiler

steel sheet slitting line

The Coil-sheet fed system starts with loading. The process can automatically
change from one material to another in under 2 minutes. The hydraulic expansion is
applied in decoiling station. After the decoiling station, the strip is
straightened and the coiling tensions are removed.

Levelling station

sheet slitting line

The levelling station principle is using upper and down rolls to staigthen the
strip. After this station the tensions for the strip are removed. The rolls and
drive motors will be choosen according to the material thickness. The straightener
settings can be imported from the controller system, we also add the manual wheel
for the special condition

Punching unit

steel coil slitting sheet metal machine price

The levelling station principle is using upper and down rolls to staigthen the
strip. After this station the tensions for the strip are removed. The rolls and
drive motors will be choosen according to the material thickness. The straightener
settings can be imported from the controller system, we also add the manual wheel
for the special condition

FAQ of Coil-Fed Punching Machine

1. How can I know if your system workable for my factory

Our metallic coil-sheet feed punching line is widely applied in steel furniture
industry, the electric cabinets. the elevator shells, the kitchen and bathroom
facilities, etc. Pls kindly share with your profile drawings and material type,
width, thickness, weight. We will offer you suitable proposals

2. Can I come to your factory to check the real working process?

Yes and before travelling, pls also kindly share with us your profiles drawings,
material type and thickness and weight. We welcome the global business partners to
visit us.

3. What's your system punching process, and are they same as turret punching?

Our system Punching is done by tools set in two traversing tool cassettes, with
the punching stroke done by a single ram plate. The dies quantity for our punching
unit is at least 6 stations more than turret punching. And our system support the
customerized square dies. The system starts with the raw coil material, which is
different as turret which need to be cut-to-length square sheets that have been
processed. The completly efficiency for our system is much higher than turret
punch.

If you want to know more about steel coil slitting machine price, please contact
us.

As a laser machine distributor, we will do our best to meet all the needs of
customers.

Minimum Order: 3000 sets
