CNC Wire Cut Machine / CNC Wire Cut EDM From China Sanxing Machinery

Brand Sanxing Machinery Medium Speed EDM CNC Wire Cut Machine, also called multi
cutting machine, is a new generation of CNC Wirecut machine. In comparison with
the high speed Wire EDM machine, medium speed machine has the higher machining
precision and the faster machining speed. So it is more suitable for cutting the
high precision and super hard materials such as the electrode of a EDM machine,
stamping dies, etc.

Sanxing Machinery Medium Speed EDM CNC Wire Cut Machine CT Model which is
designed and produced with the unique patents, is the most advanced machine ever
made in the filed of CNC Wire EDM Machine in China. They can have nearly the same
finished cutting accuracy & finished surface roughness as the brass wire cut edm
machine, but with a much lower running cost and higher cutting efficience.

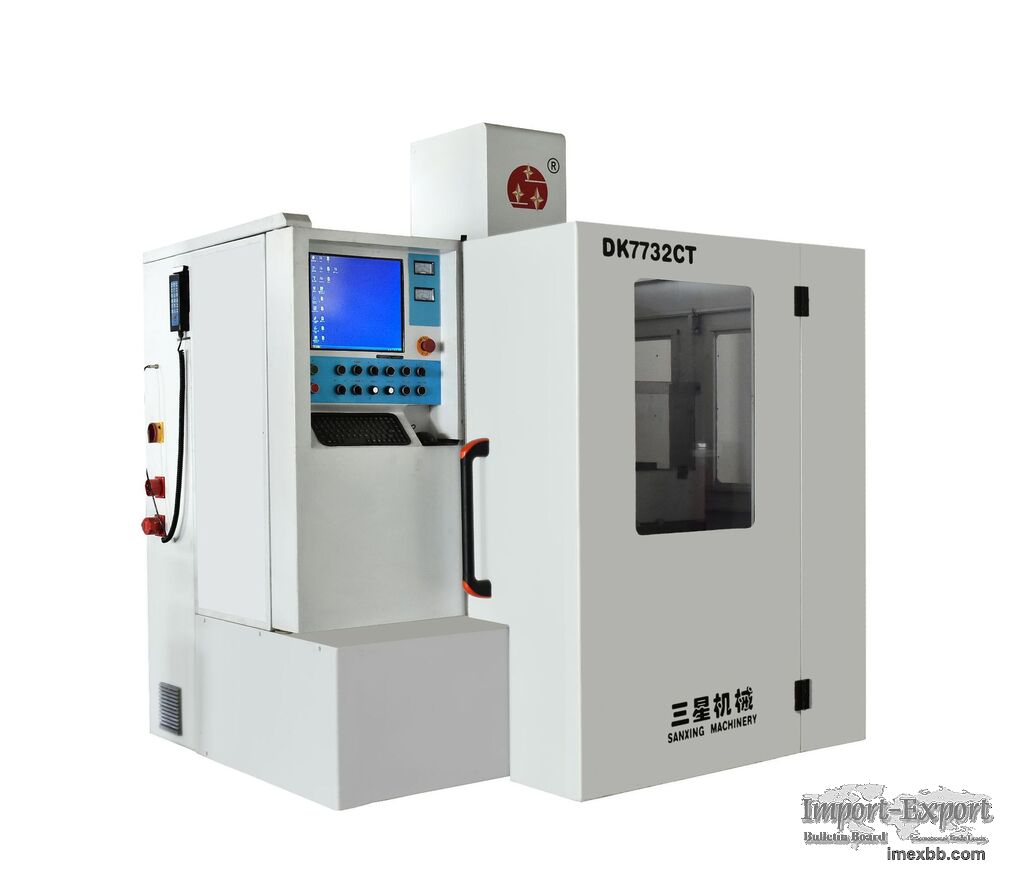

FEATURES OF CNC WIRE CUT MACHINE – DK7732CT
A. Fully Enclosed Cover (ONLY CT model)
B. Section Cutting (Patent: ZL200810021761.X)
C. Fixed Wire Drum (Patent: No.200710019393.0)
D. All Servo Motors for CT model
E. Autocut Software + Windows Operation System
F. Unique integrated Type: Controller combined in the machine body
G. Linear Guideway Made By Taiwan or Equal
H. Central lubrication system
I. Industrial Use Computer or Brand Computer
J. Auto Wire Tension Tool
K. Special Abrasive Nozzle

TECHNICAL DATA OF CNC WIRE CUT MACHINE – DK7732CT
Type Unit DK7732CT
Worktable Size mm 650×400
Table Travel mm 400×320
Max. Workpiece Thickness mm 200
Standard Workpiece Accuracy mm ≤0.006
Best Surface Roughness μm ≤0.8
Max. Cutting Speed mm2/min 180
Wire Running Speed m/s 5-11.5
Taper °/mm 6°/100(Bigger Tapers Optional)
Power Input V/Hz 3 phase 380V/50Hz or 220V/60Hz or 415V/50Hz
Overall Power KVA 2.6
Cutting Liquid Special fluid for multi-cutting
PRODUCT DETAILS
Product Details of EDM CNC Wire Cut Machine / CNC Wire Cut EDM Machine / Wirecut
Machine - Sanxing Machinery

CNC Wire Cut Machine CT Model - Sanxing Machinery sxwedm.com

OPTIONAL
1. Model: from DK7732CT To DK77120CT
2. Bigger Taper Optional
3. High Thickness Optional
4. Touch Screen Monitor Optional
5. Different Power input Optional
6. Cutting Euipment used for Aluminium Optional

COMPARSION OF ALL THE CNC WIRE CUT MACHINE FROM SANXING MACHINERYComparision of
EDM CNC Wire Cut Machine / CNC Wire Cut EDM Machine - Sanxing Machinery
DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not
damaged due to improper operation (consumables are excluded). Out of warranty
period, we will supply our best service to you as usual, if you have any question.
1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have
been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you
can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your
special requirement.

Minimum Order: 1 sets
