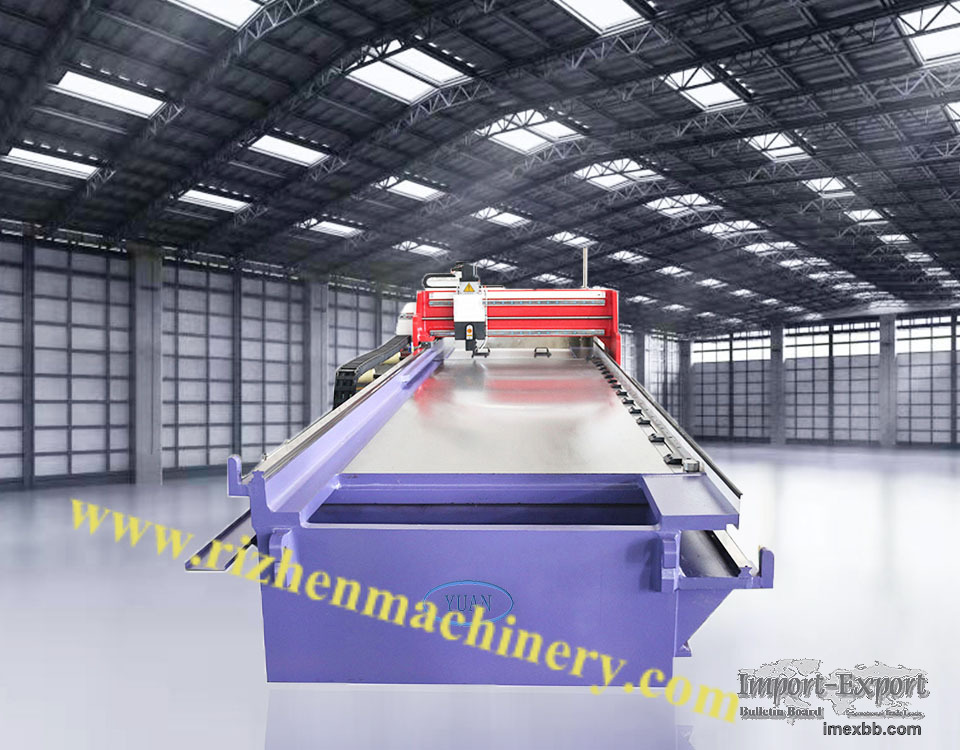

CNC V Cutting Machine

1.Horizontal CNC V Grooving machine's frame and beam are designed with frame
structure. The overall rigidity of the machine is good and durable.

2.Strictly in accordance with the machine tool processing technology, using
electric furnace tempering, eliminating welding stress and reducing equipment
deformation.
3.The metal sheet is fixed by hydraulic clamping system, which has high
slotting speed and ensures strong clamping force. The hydraulic system has
accumulator compensation and servo motors can save energy and decrease oil
temperature.
4.The Horizontal CNC V Grooving machine uses four knives to make the “V”
groove, so the cutting result will be uniform and the deformation of the
workpiece will be reduced. The optional micro-cooling system can extend the
tool life and reduce production costs.
5.This machine can work both vertically and horizontally, also can work on both
front and back side of the metal sheet.
6.Working speed can be adjusted according to the material and operator.


7.Use ball screw and line guide,gear and rack transmission to enhance the
machine durability and precision.The repeat positioning accuracy is ±0.1MM.


CNC Horizontal V Gro

Minimum Order: 1 sets
