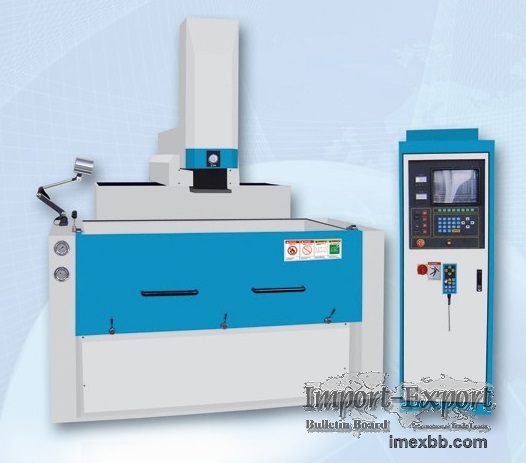

CNC Sinker EDM machine

I. Parameters:

Specification

Model NO.

Specification

TR450CNC

TR540CNC

TR650CNC

TR850CNC

TR1260CNC

TR2180CNC (2 heads )

X*Y*Z Travel (mm)

450×350×300

500X400X300

650*450*400

800*500*400

1200*600*5 , 00

1500*800*600

Working table size L*W (mm)

700×400

750X450

900*600 ,

1100×600

1250×800

2500*120 , 0

Max electrode weight (Kg)

100

120

150

200

200

300

Machine load (kg)

1000

1800

2500

30 , 00

4500

8000

Distance between electrode and working table (mm)

320-620mm

400-700

400-80 , 0

500-900

500-1000

750-1350

Size of oil reservoir (mm)

1080×700×450

1440X800X500
,
1650×950×550

1800×1100×570

2 , 100×1250×620

3500×1800×800

Machi , ne weight (kg)

2500

3300

3500

45 , 00

6500

16000

II. Features:

1. Heavy duty casting(Applying the resin sand method to remove the
internal stress. and the weigh of the machine is 10% more than other China
manufacturers);

2. The machine is equipped with C3 class ball screw and linear guide ways
imported from Taiwan;

3. The machine body cast is one whole structure which is more stable, and
the positioning accuracy is 50%-70% higher than China standard( 9 points
checked on the worktable surface);

4. 2 times higher oil output pump than other competitors.( Dia100mm oil
tubes ) ;

5. 3-5 pieces of oil sucking pipes to ensure the machining oil or door
opening.

6. New designed filtration system( bigger filter or 6 pcs filters), to
ensure the clear and fast oil output;

7. Up-down type oil tank door, which is easy for operators to open or close
the door with just two fingers.

8. All oil tubes are higher pressure type tubes;

9.Central lubrication system for moving part.( Just once in one month to
lubricate it.)

10. The machine can meet the Korean market clients.

III. Standard Accessories

a)3 axis linear guideway( Hi win/PMI)

b) High quality Pump( Luokai)

c) C3 class ball screw(Taiwan brand).

d) Lubrication pump( Shengxiang)

e) Standard toolbox (Tools included) 1piece

f) Operation manual 1piece

g) Hand fire extinguishers 1piece(dry type)

Minimum Order: 1 sets

Click to Enlarge
