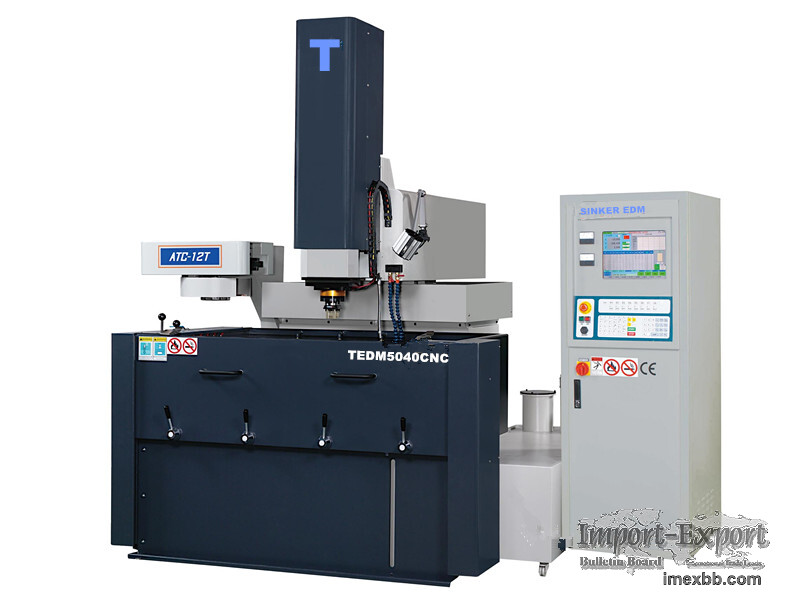

CNC Sinker EDM

Machine Features

I. Specification

Model

TEDM5040CNC
< , br>TEDM6045 CNC

TEDM7050 CNC

TEDM8060CNC

TEDM1060CNC

T , EDM1270CNC

X axis travel(mm)

500(20")

600(24" , ;)

700(28")

800(31")

1000(39")

1200(47")

Y axis travel(mm)

400(16")

450(18" , ;)

500(20")

600(24")

600(24")

700(28")

Z axis travel(mm)

350(14")

400(16" , ;)

400(16")

500(20")

500(20")

500(20")

Work table(mm)

900x500 (35"×20")

900x500 (35"x20")

1000x600 (39"×24")

1200x700 (47"×28")

1250x750 (49"×30")

1400x850 (55"×33")

Max work piece(mm)

1300x870x520 (51"×34"×20")

1500x970x520 (59"×38"×20")

1700x1100x60 , 0 (67"×43"×24")

1800x1150x60 , 0 (71"×45"×24")

2000x1150x62 , 5 (79"×45"×25")

2240x1300x62 , 5 (88"×51"×25")

Max work piece weight(KG)

2500

3000

3000
,
4000

4500

5000

Max electrode weight(KG)

200

250

350

350

350

400

Machine net weight(KG)

3520

3900

4800
,
5100

5700

6600

Oil level (mm)

110~450 (4"~18")

110~450 (4"~18")

110~450 (4"~18")

110~450 (4"~18")

110~450 (4"~18")

110~450 (4"~18")

Occupy area LxWxH(mm)

2870x3750x2670 (113"×148"×105")

3100x3780 , x2670 (122"×149"×105")

3570x3920 , x2780 (141"×154"×109")

3930x3980 , x2880 (155"×157"×113")

4010x4050 , x2880 (158"×159"×113")

4380x4330 , x2920 (172"×170"×115")

Table to electrode plate distance (mm)

400~750 (16"~30")

400~800 (16"~32")

490~890 (19"~35")

430~930 (17"~37")

430~930 (17"~37")

510~1010 (20"~40")

Filter unit

2

2

2

2

2< , br>
2

Filter barrel

4

4

4

4

, 4

4

Oil capacity (L)

780

1000

1500

1650 ,

1900

2350

II. Windows CE controller

1. A dialog window with picture description.
2. Special repaired frames to quicken the maintenance speed.
3. Close-loop design of digital feedback on three axes of the machine
significantly increases positioning precision and ORBIT-CUT machining
accuracy and efficiency.
4. Simple operation interface.
5. Common function keys are located on the operational panel for direct
use.
6. Hot key setting.
7. ATC (automatic tool change) and C-axis 360° index can be installed;
the process of coarse machining to ultra-fine machining can be completed at
one time.
8. Dialogue diagram provides various hole-expanding modes such as quick
search of edge, centers and datum marks.
9. Rich color graphic (the same resolution as a PC screen).
10. Automatic multi-step machining (coarse, medium coarse, medium fine,
fine, superfine)—up to 10 steps.
11. Unlimited number of machining conditions can be saved as machining
archives. Each set of machining conditions can be edited, modified or
stored. They are easy to edit and easy to find.
12. Automatic origin search and multi-point coordinate memory capability.
13. 1/2 design capability, ARC automatic discharge waveform detection and
automatic adjustment.
14. Automatic center position detection, automatic compensation, search of
hole center and deepest point; fixed hole machining (cyclic mode,
independent mode), which is suitable for different machining conditions;
Radial, circular, square, linear (vector), coning, 45° hole-expanding
machining.
15. Three-axis beeline, two-axis arc, three-axis helix.

16. Chinese/English versions interface, metric/British system switch and Z-
axis quick up, quick down, slow up and slow down capability.

17. Lateral machining, three axes, six directions (plane rotation).
18. All alarms describe the source, date and exact time of problem
occurrence.

20. Optical scale is applied for close-loop position control, enabling
extreme position for machining.

21. Automatic editing—settings can be done according to type of material,
work piece size, machining depth, one side die clearance, final current and
rate of electrode wear.
22. CNC models possess conventional capability of consistent level of
energy discharge, achieving stable and rapid machining and smooth high
quality on machining surface while the rate of electrode wear is still low.

23. Monitor page indicates machining path and orbital pattern in use.

III. Controler Type

power supply
Unit
E30
E50
E75
E100
E150
E , 200
Max.Machining current
30A
50A
75A
100A
150A
200A
M , eral removal rate
(mm3/min)
250
400
600
850
1250< , br>1600
Power input
3KVA
4.5KVA
6.5KVA
8KVA
16KVA
2 , 2KVA
Min.Electrode ware
0.20%
0.20%
0.20%
0.40%
0.60%
0 , .70%
Best surface finishing
0.2
0.2
0.3
0.5
0.7
0.7
N.W.
kgs
200
200
300
330
450
480< , br>packing size (LxWxH)
mm
620x740x1820
620x740x1820
620x740x , 1820
620x890x2000
620x1140x2000
620x1140x , 2000

Minimum Order: 1 sets
