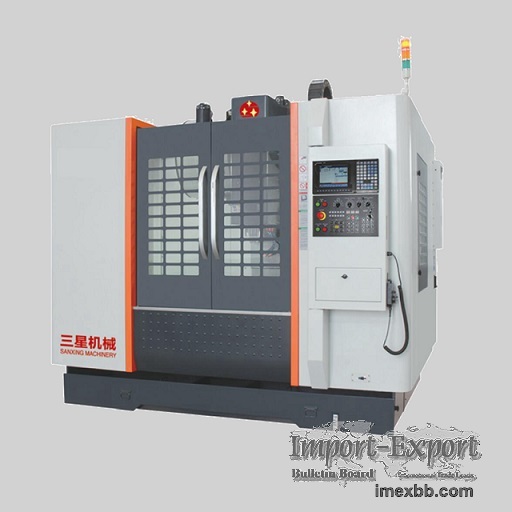

CNC Milling Machine / CNC Miller From Sanxing Machinery

CNC Milling Machine / CNC Miller is a type of automatic power mill with CNC
(Computer Numerical Controlled) controller, which is used to mill 2D/3D shapes or
patterns on various materials. It uses a rotating cylindrical tool, which is able
to move along multiple axis, and can create a variety of shapes, slots and holes.
In addition, the workpiece is often moved across the milling tool in different
directions.

Sanxing Machinery CNC Milling Machine / CNC Miller,which is suitable for
engraving, carving, milling, cutting and drilling most materials, is widely used
in injection mould, ironware mould, metal molds and other molding industries. It
is especially designed for batch milling molds, watch, eyeglasses, panel, brand,
badge, outside surface’s sleeking, three-dimensional graphics and words. Besides
that, it’s easy for this mill to form 2D or 3D relieves on a wide range of
materials.

FEATURES OF CNC MILLING MACHINE – XK715/ XH850
A. Fully Enclosed Cover
B. Controller Integrated
C. Servo Motors
D. Tool Magazine
E. With FANUC control system
F. Automatic Lubrication System
G. HIWIN/PMI Roller Type Linear Guideway
H. HIWIN/PMI Ball Screw
I. FAG Bears
J. Tool Magazine OKADA/Aimach

TECHNICAL DATA OF CNC MILLING MACHINE – XK715 / XH850


Main Parameters Unit XK715/XH850V
Table
Table size mm 1000×500
Max. Table Load kg 500
T-slots(Size
*Space*Numbers)

mm 18Tx100x5
Travel
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 500
Distance between
spindle nose

and Table top

mm 125-625
Spindle
Spindle taper BT40 φ140
Drive Mode Belt/Straight
Spindle Speed range RPM 8000/10000
/12000/15000

Motor
X axis rapid feedrate m/min 48
Y axis rapid feedrate m/min 48
Z axis rapid feedrate m/min 48
Ball Screw
X axis ball screw mm φ40xP16
Y axis ball screw mm φ40xP16
Z axis ball screw mm φ40xP16
Linear Guide Rail
X axis Linear
guide rail Width

/Numbers

35(4 Slide blocks)
Y axis Linear
guide rail Width

/Numbers

35(4 Slide blocks)
Z axis Linear
guide rail Width

/Numbers

35(4 Slide blocks)
Feed
Spindle Motor Power KW 7.5
X/Y/Z axis Motors Power KW 2002/2/3
ATC
Tool Storage Capacity T 24
Max Tool Outer diameter mm 80
Max Rinku Tool Diameter mm 120
Max Tool Length mm 200
Max Tool Weight kg 8
Tool change time sec 2
Accuracy
Positioning mm 0.003/300
Repeatability mm 0.003/300
Machine Weight
/Area cover size

Machine Size mm 2700×2400
x2500

Machine Net Weight kg 5200
Spec of CNC Milling Machine / CNC Machine Center - Sanxing Machinery
sxwedm.comSpec of CNC Milling Machine / CNC Machine Center - Sanxing Machinery
sxwedm.com

PRODUCT DETAILS OF CNC MILLING MACHINE
Details of CNC Milling Machine / CNC Machine Center - Sanxing Machinery sxwedm.com

Details of CNC Milling Machine / CNC Machine Center / CNC Miller - Sanxing
Machinery sxwedm.com

OPTIONAL
1. Model: From XK7135 to XK719(XH1890)
2. Different Control System Optional
3. Rotation worktable 4th-Axis Optional
4. Different Speed of Spindle Optional
5. Different Type of Tool Magazine Optional
6. Tool Capacity of Tool Magazine Optional

DELIVERY TIME
30~45 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not
damaged due to improper operation (consumables are excluded). Out of warranty
period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have
been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you
can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, max table loading weight, type of tool
magazine and your special requirement.

Keywords: CNC Milling Machine, CNC Miller, CNC Machine Center, CNC Metal Miller,
CNC Metal Milling Machine, Metal Machine Center, Molds Making, Vertical Milling
Machine, Vertical Machine Center, Sanxing Machinery, XK Series

Minimum Order: 1 sets
