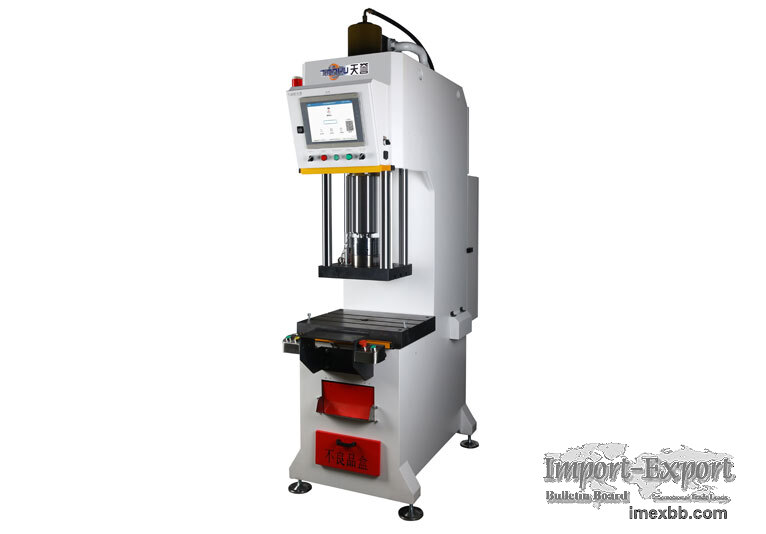

CNC HYDRAULIC PRESS


What Are the Characteristics of CNC Hydraulic Press?
Numerical control hydraulic presses are used in many factories, and they play
a very important role, but many people have little knowledge of it. The
following is a brief introduction to its character...

Operating Principle Of CNC Hydraulic Press
CNC hydraulic press, also known as CNC oil press, CNC pressing and CNC press,
is mainly composed of a bow-shaped frame, moving plate, lower workbench,
guide pillar, main oil cylinder, hydraulic system, electrical system,
pressure sensor and pipeline. With strong versatility, it adds the pressure
sensor to the hydraulic machine tool. After data acquisition and system
processing by a microcomputer, it is converted into a pressing force value
and displays the digital. When it exceeds the limit, the audible and visual
alarm and shutdown signal will be sent out to achieve the purpose of
automatic control of pressing force.

Product Mix and Features Of CNC Hydraulic Press
CNC hydraulic press machine is mainly composed of a bow-shaped frame, moving
plate, lower worktable, guide pillar, main oil cylinder, hydraulic system,
electrical system, pressure sensor and pipeline. The body adopts a bow-shaped
structure, which is similar to the traditional mechanical punching machine,
but with a simpler and more compact structure. It has the advantages of small
area and convenient operation; the main cylinder is a piston cylinder, which
is placed on the top of the body. And when the cylinder works, it presses
from top to bottom. The built-in quick cylinder can realize the rapid
downward and slow pressing action, which can greatly improve the production
efficiency; the electrical system adopts PLC+touch screen+proportional
amplifier with the proportional hydraulic system, and sends the instructions
according to the process requirements to complete the process cycle action of
the machine; the hydraulic system of the four column hydraulic press machine
is controlled by the hydraulic manifold block oil circuit integration to
achieve the cycle action required by the process.

Applicable Industry Of CNC Hydraulic Press
The product can be applied to the automotive industry, electrical machinery
industry, electronics industry, home appliance industry, machinery industry
and other industries that are in need of precise control of pressing
displacement and pressing force.

Product Use Of CNC Hydraulic Press
TY502 is suitable for the assembly of various parts requiring interference
detection and assembly with pressing force of 150-600kn, such as the assembly
of automobile shock absorber, precision bearing, shaft sleeve, automobile
parts, water pump, turbocharger and gearbox; pressing of motor components
(spindle, shell, bearing, etc.) in the motor industry; pressing of the
circuit board components (plug-in) and the pressing of electronic parts in
the electronics industry; home appliance industry, pressing of home appliance
parts and the riveting of home appliance parts; pressing of mechanical parts,
automatic assembly line, life test of wearing parts, and other components
that are in need of precise control of pressing displacement and pressing
force.

Main Functions Of CNC Hydraulic Press


Position detection: compare with each final pressing position. If the final
position is not within the set upper and lower limits, the equipment will
alarm and prompt the reason for the failure.

Peak detection: record the peak pressure of each pressing process. It will
alarm and prompt with a text when exceeding the set range.

Data query: You can query the history data of pressing (interference
detection data, peak pressure data, in-place detection data,
force/displacement curve data).

Data download: history data can be backed up to a U disk or network server,
and an EXCEL form can be generated for viewing.

Data connection: When connected to the network, the IP address will be
displayed on the interface, and the operating data of the equipment can be
backed up on the connected server, and the remote printing function can be
performed for data analysis.

Curve sampling: it can sample up to 200 sets of force/displacement data
during the pressing process, draw into a curve and store it.

Formula storage: it can store 999,999 sets of pressing parameters and create
the corresponding formula according to the product drawing number or mold
number. When the users want to use this formula for a second time, just call
out the corresponding formula to produce without repeated settings.

Product QR code scanning: the bar code scanner can scan the external
information, which can help users quickly store and call out the formula
parameters, and make the product quality traceable.

Real-time display: the current pressing position is displayed in real time
with the display accuracy of 0.01mm, and the current pressure is displayed in
real time with the unit of 0.01KN.

Data statistics: figure out the number of pressing, qualified products and
defective products and the working time in each working section of each
account.

Identification of tooling QR code: identify the height of the tooling and
judge whether the tooling is used correctly (compare the QR code on the
process card with that on the tooling).

Grating protection function: during the pressing process of the equipment,
when a foreign matter is detected by the infrared protection grating in the
pressing, the four column hydraulic press will automatically stop running
immediately and sound an alarm.

Backup error prevention function: 4 sets of product error prevention
functions (for detecting whether the workpiece is placed upright, whether the
workpiece is placed, or whether the pressing requirements are met ).

Spare cylinder, ejector cylinder, air blowing and other functions: it can
directly open and call out the subsequent tooling with the cylinder clamping
action or the ejector.

Alarm function: There are will corresponding text prompts for all alarms sent
by the equipment.

Product size chart (See attachment: CAD).

Technical parameters (See attachment: CAD).

Product Advantages Of CNC Hydraulic Press
Meet the data requirements of Industry 4.0;

High-precision displacement monitoring has irreplaceable advantages for
interference detection;

The system administrator has a high degree of freedom, and the collaboration
is more efficient;
