CNC High-Speed Milling Mold Parts

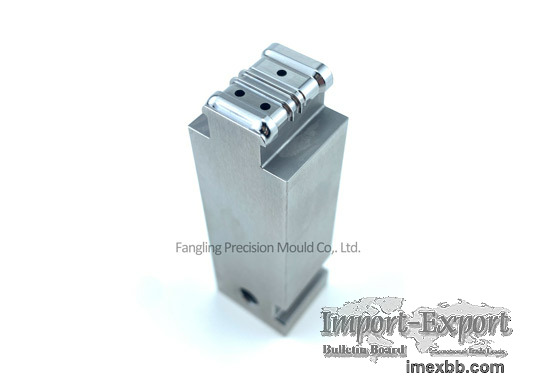

Precision CNC milling parts

Completed by CNC milling and forming grinding

Accuracy of our custom cnc machining milling parts can be achieved within
±0.002mm.

Main products: all kinds of precision parts, connectors, fixture, standard
parts, mold design, development and manufacturing.
Business projects: precision molding grinding, precision EDM, CNC wire cutting,
precision milling machining.
Independently research and develop and design automation production machine, to
solve the human bottleneck problem and production obstacles for clients.
Customized customer demand, research and develop automated production in
accordance with the customer production planning.
Automated assembly production, share client capacity, OEM production to finish
customer delivery.

We cooperated with the businesses from different countries and regions
Japan ABLE, Belgian Accuritas, Taiwan Cheng Wei Precision Industry Co., Ltd.,
Cheng Ming Electronic Science and Technology Co., Ltd. (Dongguan)

Our company wants to establish long-term cooperative relationship with the
following types of foreign enterprises:
Electronics, automotive, electrical machine, electrical equipment,
instrumentation, home appliances, communications and other industries.

DESCRIPTION OF
CNC HIGH-SPEED MILLING MOLD PARTS
What Are The Main cnc milling metal parts
Column and base

The column and base support the remaining parts of a milling machine, and the
spindle is lubricated by an oil reservoir and pump in the column. The base
supports the column and includes a coolant reservoir and a pump for coolant
delivery during machining operations.

Knee
The gearing mechanism is housed inside a knee. Dovetail ways connect the knee
to the column. A vertical positioning screw, often known as an elevating screw,
supports and adjusts it. The elevating screw moves the knee up and down by
raising or lowering the lever using a hand or power feed.

Saddle and Swivel Table
The table is supported by the saddle, which is on the knee. In horizontal
milling m/c, the saddle slides on a horizontal dovetail on the knee, and the
dovetail is parallel to the spindle’s axis. The saddle swiveled (revolved)
horizontally in both directions, and the swivel table was attached to it.

Spindle
A milling machine’s cutting tools are held and driven by the spindle. It is
supported by the column and is positioned on bearings. An electric motor drives
the spindle using gear trains located on the column. The spindle face, close to
the table, is machined with an internal taper. The front face has two keys that
give a positive drive for the cutter holder or arbor.

Table
A table is a rectangular casting that sits on the saddle’s top. The table is
used to keep the work in place or to hold work-holding equipment. Several T-
slots are available for storing work and work-holding devices (jigs and
fixtures). It can be powered or operated by hand. It engages and turns the
longitudinal hand crank to move the table by hand. It engages longitudinal
direction feeds control lever to move it by power.

Over Arm/ Overhanging Arm
On the upper face of the column, there is an overarm, which is a horizontal
beam. It could be a single casting that slides on the top face of the column’s
dovetail manner.

Ram
In a vertical milling machine, the ram is an overhanging arm. The milling head
is attached to one end of the ram, positioned on the top of the column.

If you need any kinds of precision plastic molding, please contact us, as a
professional precision moulding company, Fangling is willing to offer you high
quality products.

Minimum Order: 1 packs

Click to Enlarge
