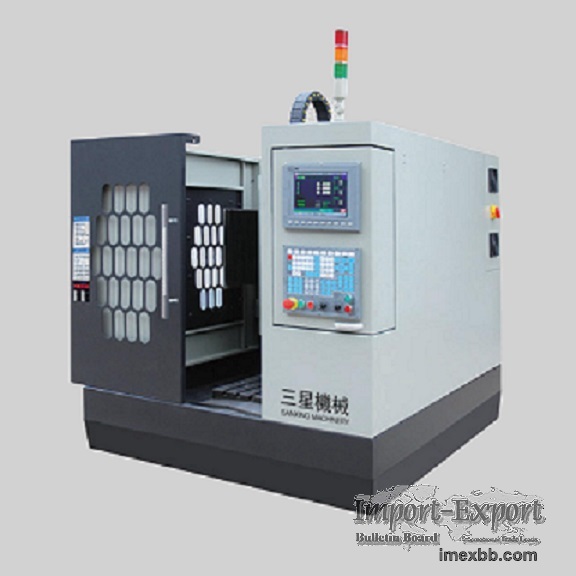

CNC Engraving Milling Machine / CNC Engraver From Sanxing Machinery

Sanxing Machine High Speed CNC Engraving Machine / CNC Engraver is the
multifunctional CNC machine integrating engraving, milling and drilling. With fast
rotation speed, low working noise and high control accuracy, it is widely used in
various mold making, such as the plastic mold, stamping mold, die-casting mold,
shoe mold and other metal or non-metal parts.

High Speed CNC Engraving Machine which is also called CNC Milling Engraving
machine or CNC Engraver, looks like a small one milling machine. It has a very
wide range of applications and can be applied to various fields and industries,
and is suitable for engraving and cutting of various materials (except for
materials with low melting points).

FEATURES OF HIGH SPEED CNC ENGRAVING MACHINE DK5040
A. Fully Enclosed Cover
B. Controller Integrated
C. Servo Motors
D. Tool Magazine
E. With LNC control system, other control systems are optional.
F. Automatic Lubrication System
G. Oil Cooling System

TECHNICAL DATA OF HIGH SPEED CNC ENGRAVING MACHINE DK5040
Specification Unit SXDK5040
Max. Engraving Size mm 500x400x220
Table Size mm 500×400
Max. Dry Running Speed mm/min 15000
Power of Spindle Motor kw 3
Max. Spindle Speed r/min 21000 (24000 Optional)
Max. Tool Diameter mm 3-12
Power of Spindle kw 7
Drive Motor Japan/Taiwan servo motor optional
CNC Control System SYNTEC, LNC optional
Table Loading Weight kg 300
Machine Weight T 2.3
High Speed CNC Engraving Machine / CNC Engraver - Sanxing Machinery sxwedm.com

PRODUCT DETAILS OF HIGH SPEED CNC ENGRAVING MACHINE DK5040
High Speed CNC Engraving Machine / CNC Engraver - Sanxing Machinery sxwedm.com
CNC Engraving Machine / High Speed CNC Engraver - Sanxing Machinery sxwedm.com

OPTIONAL
1. Model: From DK3020-DK200150
2. Different Tool Magazine Optional
3. Rotation worktable Optional
4. Different Speed of Spindle Optional
5. Different Control System Optional

DELIVERY TIME
40~55 days after order confirmation
WARRANTY
One year
During the warranty period, we can provide free parts and components that are not
damaged due to improper operation (consumables are excluded). Out of warranty
period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have
been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you
can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, max table loading weight, type of tool
magazine, control system and your special requirement.

Minimum Order: 1 sets
