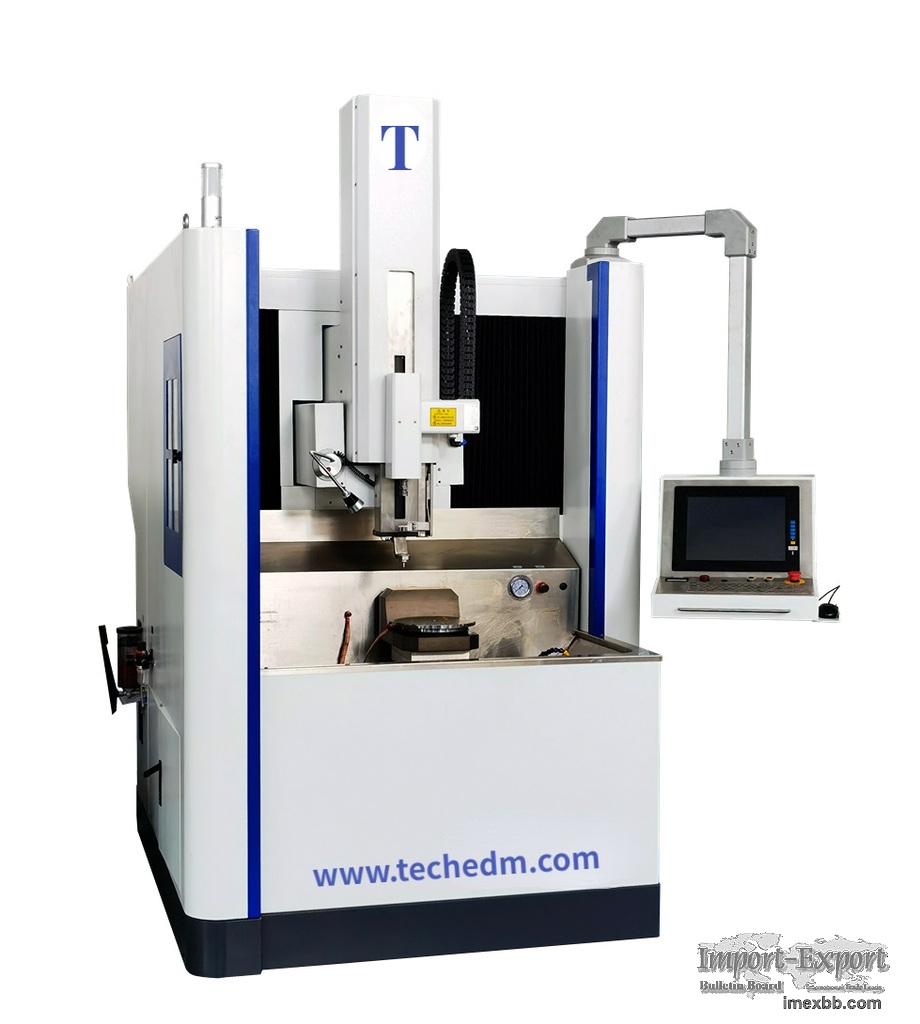

CNC Drilling EDM machine

I. Main Specification



Model

TD406CNC ,

Work table size

550×360mm

Table travel(X×Y*Z)

400×300*370mm

S axis travel

400 mm

B axis rotation Angle

±90°

C axis rotation Angle

0-360°

C axis rotation table diameter

250mm

C axis rotation table load

≤30kg

Max distance between worktable to electrode chuck

400mm

Electrode diameter

0.15-3.0 mm

Electrode chuck

Pneumatic spring chuck

Max moving speed of straight axis

≥2000mm/min

Motors of axis

Japan Panasonic/Fuji AC servo motor (absolute encoder)

Min moving equivalent

0.001mm

Axis movement control mode

Multifunctional electronic hand wheel

Input/output interface

USB 、LAN、RS-232

Control type

Industrial computer control card

Screen

15″LCD touch-screen

Programming mode

G code, MDI, CAD list

Pitch compensation

Yes

Positioning accuracy

0.010mm

Repeated positioning accuracy

0.005mm

Working fluid pressure

0-10Mpa

Type of working fluid

Deionized water

Compressed air pressure

0.55～0.65MPa

Max. working current

30 A

Max. drilling speed

30 -120mm/min

Machine dimension

2300×2100×2500 mm


II. The machine characteristics:

1. Specialized in drilling turbine blade air holes
2. Minimum hole dia. ≤0.2mm
3. Cradle type table A, C axis
4. X, Y, Z, S, B, C axis can realize position closed-loop control
5. Any Angle air hole can be drilled with only once clamping
6. The hole penetration is judged automatically and the penetration depth is
controllable
7. Patented technology taper hole processing, straight hole processing
8. Record of the drilling hole position data for traceability query
9. Multi-coordinate system international general G code programming
10. Pneumatic electrode handle ER chuck centering
11. Off-line electrode replacement
12. Remember the origin position at any time
13. Full system absolute encoder AC servo motor
14. Standard deionized water treatment system
15. The precision of the mechanical structure of the slide pillow is
maintained for a long time
16.On-line job measurement
17. Manual encoder shift shaft convenient and fast


III. Advantages of the machine


1. It is composed of main engine, CNC pulse power control cabinet, deionized
water treatment system, etc.

2. Main machine: composed of bed, column, X axis, Y axis, Z axis, S axis, B
axis, C axis

3. CNC pulse power control cabinet: It is composed of industrial control
computer, CNC system, touch screen, servo motors drive, machine tool
electrical appliances, high-efficiency discharge pulse power supply, rocker
arm waterproof and antipollution stainless steel keyboard control table,
multi-function remote control hand box, etc.

4. Deionized water treatment systems: the 400 L stainless steel water tank,
filter system, to ion system, conductivity detection system, high pressure
water pump, etc.
