CNC Aluminum Window Door Machine Double Head Cutting Saw

Product Description



Aluminum Window Door Machine /Window CNC Cutting Machine/Double Head Cutting
Saw Machine with Good Price

Performances and Features

--Applying to sawing sorts of aluminum profiles for doors/windows and
curtain walls by cutting at angles 22.5º/67.5°,45º and 90º .
--High quality servo motors are adopted. LCD touching display screen for
operating control, through which the cutting lengths and angles are
inputted.
The automatic positioning for profile's length is available.
--Saw-straight-outgoing mode, connected parallelly with hydro-pneumatic
control system, so as to ensure the feeding stability of the saw blades at
stepless speed.
--The two sets of clamping cylinders clamp the profiles from two different
directions horizontally and vertically, that makes the clamps more reliable.
--Hard alloy blade, automatic cooling spray device
--Attached holding rack makes clamping easier.
--Automatic feeding and cutting.

Machining precision
-Repetition on length: ±0.1 mm
-Repetition on angle: ±5′
-Verticality of cutting surface: 0.1 mm(100×100 mm section)
-Planeness of cutting surface: 0.1 mm(100×100 mm section)
--Roughness of cutting surface: Ra12.5 µm

Friendly reminder: If you do not see the ideal machine in our store (due to
time and space constraints, we did not display all the machines on the
page), please contact our online sales. We will provide you with a more
suitable machine solution!



Detailed Photos

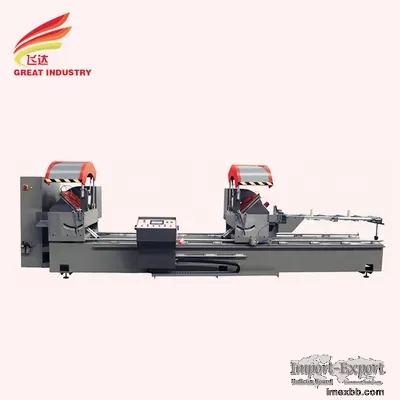

CNC Aluminum Window Door Machine Double Head Cutting Saw 0

Our Advantages

20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES &
GLASS



Packaging & Shipping

Non Fumigation Plywood Wooden Box



The after-sales service of our machines
No. Item Service
1 Service duration 7*24 Hours (All Weather Service)
2 Warranty period 1 year
