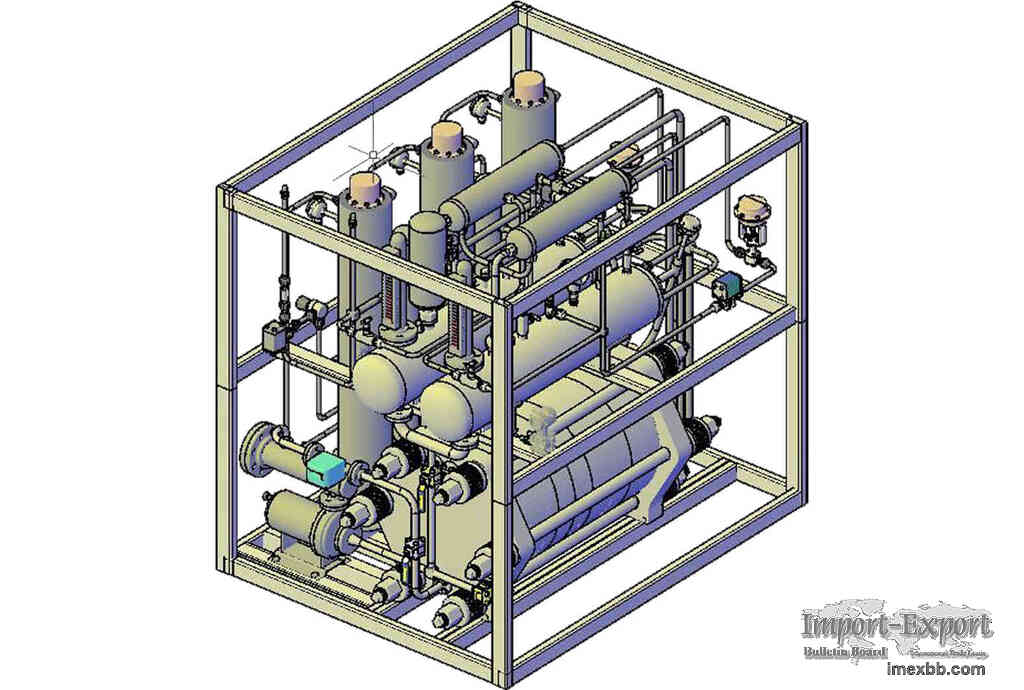

Closed circulating water system for hydrogen production by water electrolys

Direct contact to send enquiries
Sales manager : John Email mailto : sales3@zxdh2.com
Skype/WeChat : 18159889985 Mobile/WhatsApp : +86 18159889985


Technical specifications
P/N ZXD-30
Hydrogen Production（m3/h） 40
Oxygen Production（m3/h） 15
Hydrogen Purity（V/V） ≥99.99%
Oxygen Purity（V/V） ≥92.5%
Operating load 50%-100%
Working Pressure（MPa） 1.5~2.6
Hydrogen Moisture Content（g/m3） ≤4
Hydrogen Alkalinity（mg/m3） ≤1
Working Temperature（℃） 85±5
Cooling water flow（m3/h） 4.2
DC power consumption(kW·h/m3H2) ≤4.3
External dimension of electrolyzer L×W×H （mm） 2180x1160x1400
Electrolyzer Weight（kg） 4800
Alkali concentration 30% KOH
Circulation quantity of alkali liquor（m3/h） 2.0~2.5
Koh consumption (normal operation)（kg/unit） 320


Zhongxinda Hydrogen Energy Technology Can guarantee to the customer
① We have the most complete and diversified product lines and services
based on water electrolysis
hydrogen production systems and application solutions;
② We have sophisticated technology research and development, production,
sales, after-sales service
and management team, as well as experienced engineering team to provide
door-to-door service.
③ We have over 10 years of experience in various industrial and energy
sectors with extensive project
experience and relevant authority qualifications.
