Clear PVC Elbow

VERYGREEN can offer high-quality Clear PVC Elbows to meet your different needs.

Clear PVC elbows are widely used in PVC irrigation systems, usually at a 90-
degree angle, which has the effect of changing the direction of the pipeline.
Sometimes clear PVC elbows can also be used in combination to achieve a greater
effect of changing the direction of the pipeline.

The use of glue bonding, convenient and fast construction in clear pvc elbow.
The bonding area of clear pvc elbow is also transparent and visible, avoiding
blind spots on vision.
The bonding pressure of clear pvc elbowis enough, which does not affect the
normal use and will not lead to the pressure drop of the whole pipeline system.

What is The Use of a Verygreen Clear PVC Elbow?
The main application areas of clear PVC unconventional elbows are bridges,
tunnels, etc. The bridge itself has a certain slope, and it is necessary to use
unconventional degree elbows to maintain the beauty of the drainage network
outside the bridge. Conventional clear PVC elbows use molds for one-time
casting and molding. The cost is relatively low. Since the hot bending and
welding are mainly manual, the price is relatively high.

Parameter of Clear PVC Elbow
ASTM
SIZE d/mm d1/mm d2/mm I/mm G/mm
1/2" 16.0 21.54 21.23 24.0 13.0
3/4" 22.0 26.87 26.57 27.0 15.0
1" 30.0 33.65 33.27 30.0 18.0
1 1/4" 38.0 42.42 42.04 34.0 23.0
1 1/2" 44.0 48.56 48.11 37.0 26.0
2" 54.0 60.63 60.17 41.0 32.0
2 1/2" 67.0 73.38 72.85 46.5 39.0
3" 82.0 89.31 88.70 50.0 47.0
4" 106.0 114.76 114.10 60.0 59.0
5" 133.0 141.81 141.00 77.0 76.5
6" 158.0 168.83 168.00 79.0 89.0

DIN
SIZE D/mm d/mm d1/mm d2/mm I/mm
DN15 27.0 17 20.30 20.10 16.0
DN20 33.0 23 25.30 25.10 20.0
DN25 41.0 29 32.30 32.10 24.0
DN32 50.0 37 40.30 40.10 28.0
DN40 61.0 47 50.30 50.10 32.0
DN50 75.0 60 63.30 63.10 38.0
DN65 92.0 72 75.30 75.10 44.0
DN80 110.6 87.1 90.30 90.10 51.0
DN100 127.0 106.1 110.40 110.10 61.0
DN125 162.0 133 140.50 140.20 77.0
DN150 186.0 154 160.50 160.20 86.0

Suzhou Verygreen New Material Co., LTD is a professional clear pvc pipe
supplier, we provide clear pvc pipe, clear pvc pipe and etc. Want to know more?
Please contact us.

Minimum Order: 1 sets

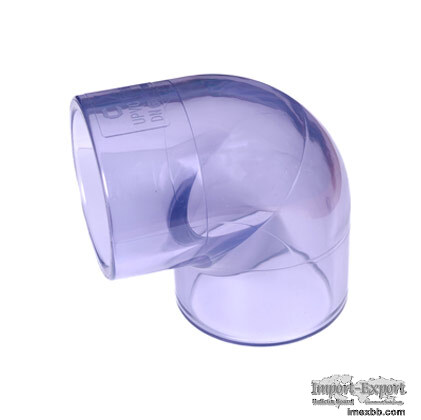

Clear PVC Elbow
Enlarge Click to Enlarge
