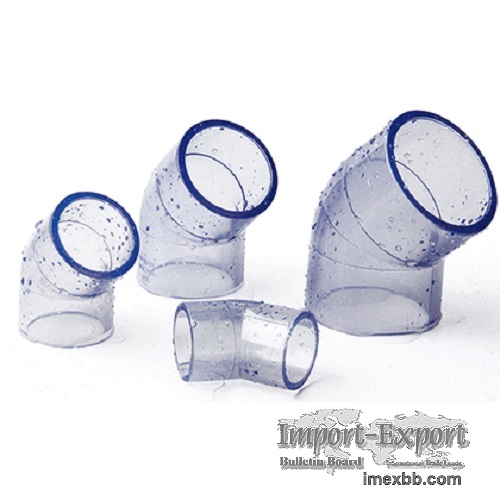

Clear PVC 45° Elbow

As a clear pvc pipe supplier, VERYGREEN can offer high-quality Clear Pvc 45°
Elbow to meet your different needs.

The difference between clear PVC elbow lies in the different angles of the
elbow. According to the actual construction situation, choose different angle
elbow products. For example, the direction of the pipeline, if a 45-degree turn
is required, a 45-degree elbow is selected.

The use of glue bonding, convenient and fast construction

The bonding area of these transparent pipe fittings is also transparent and
visible, avoiding blind spots on vision

The bonding pressure is enough, which does not affect the normal use and will
not lead to the pressure drop of the whole pipeline system

Difference between a Clear 90° PVC Elbow and a Clear PVC 45°Elbow
The extension lines of the two nozzles of the clear 90° PVC elbow are
vertical, while the extension lines of the two nozzles of the clear 45° PVC
elbow intersect at an acute angle. Look at the takeover: the 90 degree elbow
forms a right angle after taking over the large clear transparent pvc pipe, and
the clear 45° PVC elbow forms an obtuse angle after taking over the pipe. If a
clear 90° PVC elbow is used for the through-wall drainage pipe, it will not
only cause a lot of noise under the condition of large drop and large water
flow but also a great impact on the elbow part if the water flow is large or
there are foreign objects. The force may cause the elbow to rupture. When a
clear 45° PVC elbow is used, a certain slope is formed at the corner, which
acts as a buffer. Even if the water flow is large and foreign matter is
included, the impact on the pipe wall at the elbow will be greatly reduced.

Dimension of Clear PVC 45° Elbow

Parameter of Clear PVC 45° Elbow
ASTM
SIZE D d d1 d2 I
1/2" 29.5 16 21.54 21.23 24
3/4" 35.2 22 26.87 26.57 27
1" 43 30 33.65 33.27 30
1 1/4" 53.2 38 42.42 42.04 34
1 1/2" 60 44 48.56 48.11 37
2" 72 54 60.63 60.17 41
2 1/2" 88 67 73.38 72.85 46.5
3" 108 82 89.31 88.7 50
4" 132 106 114.76 114.1 60
5" 164 133 141.81 141 77
6" 191 158 168.83 168 79

DIN
SIZE D d d1 d2 I
DN15 27 16 20.3 20.1 16
DN20 32 21 25.3 25.1 20
DN25 40 28 32.3 32.1 24
DN32 50 36 40.3 40.1 28
DN40 63 46 50.3 50.1 32
DN50 75 57 63.3 63.1 38
DN65 90 70 75.3 75.1 44
DN80 110 86.1 90.3 90.1 51
DN100 127 106.1 110.4 110.1 61
DN125 162 133 140.5 140.2 77
DN150 186 154 160.5 160.2 86
