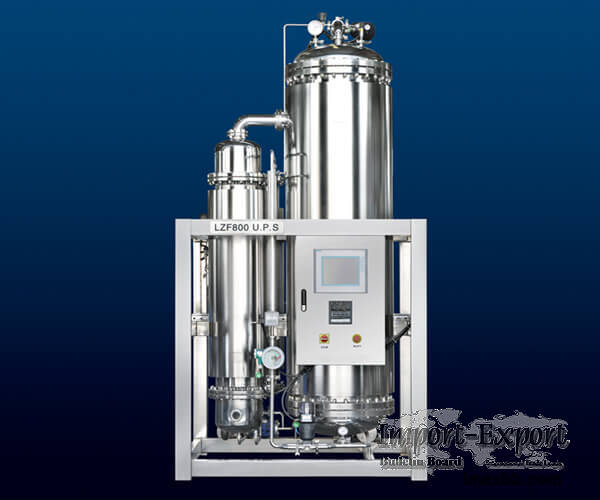

CLEAN STEAM GENERATOR

The prototype of the clean steam generator is a pure steam generator in the
pharmaceutical industry. In structural design, it simplifies and weakens the
complex steam water separation structure. Compact structure, small floor area,
no water storage, high quality of clean steam.

It is widely used in food, beverage, electronics, dairy, medicine and other
industries.

Specification of Clean Steam Generation Equipment
Specification Steam Pressure(Mpa) Steam Output(Kg/h) Steam
Consumption(Kg/h) Purified Water Consumption(L/h) Clean Steam
Pressure(Mpa) Dimension L×W×H(mm)
CSG100 0.4 100 130 125 0.3 700×900×2500
CSG200 0.4 200 260 250 0.3 700×1000×2700
CSG300 0.4 300 390 375 0.3 800×1100×2800
CSG400 0.4 400 520 500 0.3 800×1200×3000
CSG500 0.4 500 650 625 0.3 800×1300×3100
CSG600 0.4 600 780 750 0.3 900×1300×3100
CSG700 0.4 700 910 875 0.3 900×1300×3100
CSG800 0.4 800 1040 1000 0.3 1000×1300×3200
CSG900 0.4 900 1170 1125 0.3 1000×1300×3200
CSG1000 0.4 1000 1300 1250 0.3 1200×1300×3200
CSG1500 0.4 1500 1950 1875 0.3 1400×1300×3200
CSG2000 0.4 2000 2600 2500 0.3 1400×1300×3200

FEATURES OF CLEAN STEAM GENERATORS
01.
Precise control of clean steam output pressure and temperature, fluctuation
within+5%.

02.
Clean steam pressure output range: 2-4Bar.

03.
PLC+HMI full-automatic control mode.

04.
Rising film/falling film, two working modes are optional.

05.
Comply with relevant requirements of WS310 supply room management
specification.

As professional clean steam generator manufacturers, we will do our best to
meet all the needs of customers.
