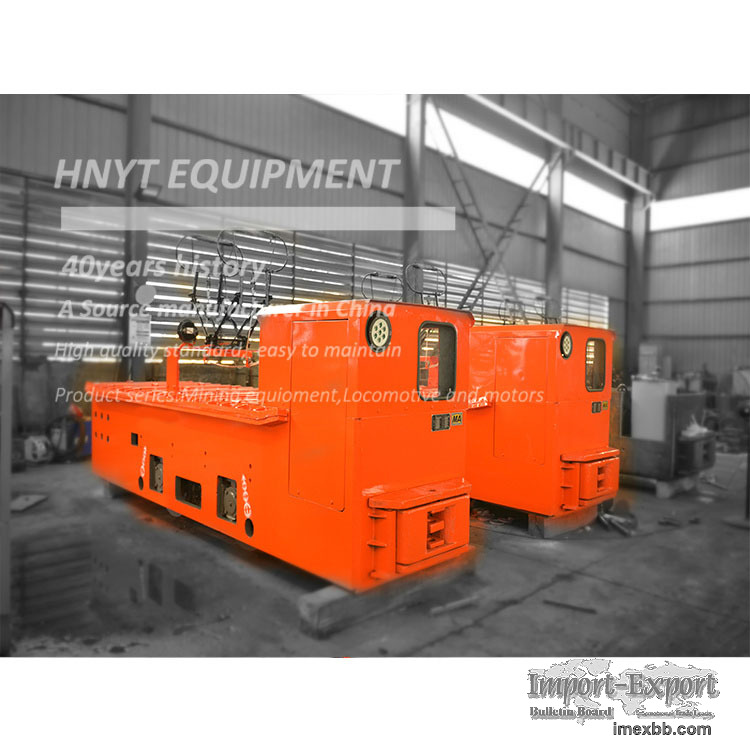

CJY10 Ton Xiangtan Trolley Electric Locomotive

CJY10 Ton Xiangtan Trolley Electric Locomotive

Trolley electric locomotive is a kind of rail transportation traction
equipment, powered by transformers and overhead lines. Mainly used in mines
where there is no risk of explosion. Because of its special power supply mode,
the trolley electric locomotive has no limit on the cruising range. Therefore,
it is suitable for long-term and long-distance use. There are also many options
in terms of speed regulation and braking methods. Speed control methods include
resistance speed control, chopping speed control and frequency conversion speed
control. Braking methods include pure mechanical braking, hydraulic braking and
compressed air braking. In addition, electric braking can also be selected as
an auxiliary braking method.

Adhesive / total weight (t) : 10 ton
Track gauge (mm) : 600.762.900
Traction (KN) : 13.05 18.93
Max. Traction (KN) : 24.5
Speed(km/h) : 11, 10.5
Power (KW) : 21*2 30*2 24*2
Dimensions Length(mm) : 4550, 4650
Width(mm) : 1050,1212or 1350
Height(mm) : 1600
Wheelbase (mm) : 1100
Wheel diameter (mm) : 680
Min Curve radius (m) : 7,10
Controller : Resistencia or IGBT
Braking method : Mechanical

Minimum Order: 1 sets
