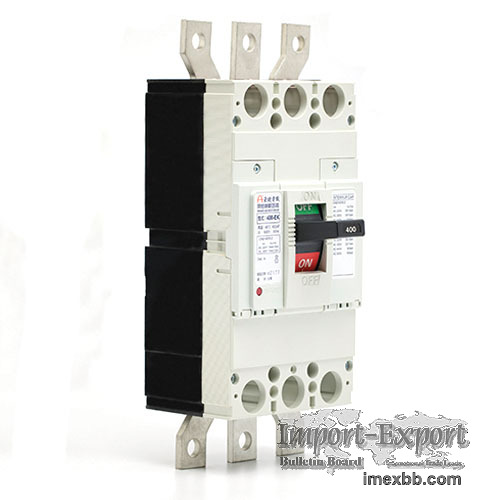

Circuit Breaker - Model 400AF

Circuit Breaker for Industrial Wiring
Model 400AF (400 Series)

With a frame capacity of 400AF, the 400 Series comprises various types: the
400-EK, the 400-SK, and the 400-HK. These types are available in 2, 3, and
4 poles, allowing for flexible configuration based on specific
requirements.

The 400 Series is designed to operate within a rated insulation voltage
(Ui) of 690V, ensuring safe and efficient electrical performance. It has a
rated voltage (Ue) of 600V, making it suitable for a wide range of
electrical systems.

The rated current (In) options for the 400 Series include 250A, 300A, 350A,
and 400A. These different current ratings allow for precise selection to
meet the specific load demands of various applications.

For rated breaking capacity (kA), the 400 Series exhibits different values
depending on the voltage level. At 220V, the 400-EK has a rating of
35/18kA, the 400-SK has a rating of 50/25kA, and the 400-HK offers 85/35kA.
At 380V, the ratings are 25/13kA for the 400-EK, 30/15kA for the 400-SK,
and 50/20kA for the 400-HK. These breaking capacities ensure reliable
protection against overloads and short circuits.
