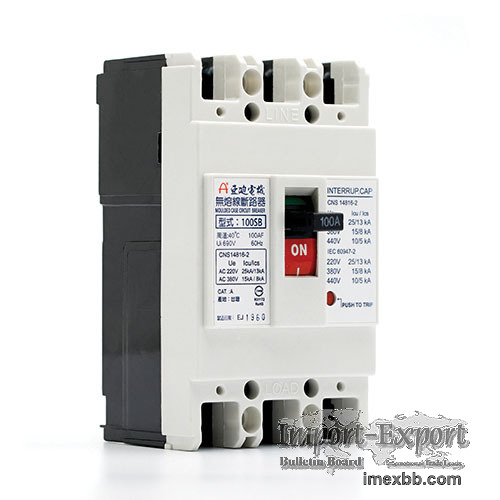

Circuit Breaker for Industrial Wiring

Type 100AF (100 Series)

With a frame capacity of 100AF, the 100 Series offers two main types: the
100EB and the 100SB. The 100EB is available in 2 poles, while the 100SB
comes with 3 poles. The choice of poles allows for flexible configuration
according to specific needs and requirements.

The 100 Series is designed to operate within a rated insulation voltage
(Ui) of 690V, ensuring safe and efficient electrical performance. The rated
voltage (Ue) is 600V, making it compatible with a wide range of electrical
systems and applications.
The 100 Series provides various options for rated current (In), including
15A, 20A, 30A, 40A, 50A, 60A, 75A, and 100A. This versatility allows users
to select the appropriate current rating based on their specific load
demands.
