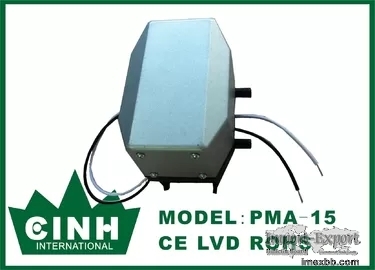

Cinhpump Silent Micro Air Pump Mini Electric Long Lifetime Air Pump

Cinhpump Silent Micro Air Pump Mini Electric Long Lifetime Air Pump



Quick Detail:



15L/m air flowrate

30kpa air pressure

Double diaphragm, duckbill valves

Aluminum body

Continuous working day and night

Warranty lifetime 10,000hours or 2years

size:106x76x74 mm

weight:0.7 kg

Outlet & Inlet Dia: 0.3" (7.6 mm)





Description:



Cinhpump Silent Micro Air Pump PMA-15 series use a unique linear motion design
that has the capability of over 20,000 hours of continuous maintenance-free
operation. They are compact, cool and highly reliable and inexpensive.





Features:



Compact size
Steady air outputs with low noise
Very low vibration
Low power consumption
Economical




Applications:



intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air massage instrument

medical applications

industrial applications

household appliance



Specifications:



Air Output: 30SCFH(15Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz or DC12V / DC24V
with our mini power inveter.

Power Consumption: 10W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 0.3"(7.6mm)

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

Ne , t Weight: 0.7kgs



Performance Curve



Cinhpump Silent Micro Air Pump Mini Electric Long Lifetime Air Pump 0



Cinhpump Silent Micro Air Pump Mini Electric Long Lifetime Air Pump 1





Competitive Advantage:



long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure.
