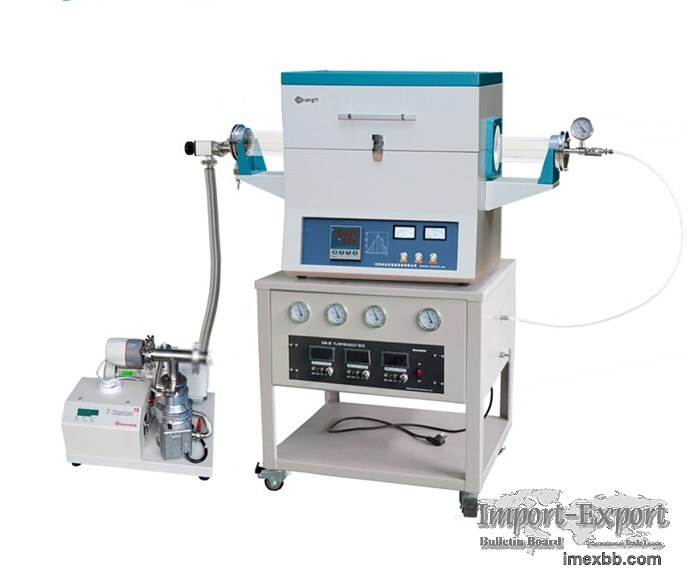

CHY-T1260A-3Z4C 1200 degree CVD system

CHY-T1260A-3Z4C 1200 degree CVD system with O.D60*1000mm Quartz Tube CVD
machine CVD Tube Furnace Price

1.O.D60*1000mm high purity quartz tube
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Three gas way mass flow controller with precision gas flow controller
5.Two stage Vacuum Pump
5.Made by Henan Chengyi

CVD machine APPLICATION
1.Laboratory heat thermal processing
2.High Vacuum Sintering Heating Annealing Brazing
3.Laboratory Thin Film Preparation,Nano tube growthing
4.Laboratory CVD system,graphene growthing,preparation.

PRODUCT PARAMETERS
Product Name 1200 degree CVD Furnace
Modle No. CHY-T1260A-3Z4C
Heating zones Single heating zone
Heating zone length 400mm
Constant temperature zone length 200mm
Tube Material high purity quartz tube
Tube diameter O.D60*I.D54*1000mm Quartz Tube
Tube Length 1000mm,750mm,1000mm,1200mm as enquiry
Thermcouple K type
Maximum heating temper 1150 dgree
Heating rate 20c/min,adjustable
Heating element Fe-Co-Al alloy
Sealing Method stainless steel vacuum flange
Vacuum Air-tightness 9.8×10-4Pa
Temperature Accuracy ±1℃
Control Mode Intelligent PID programmable Control
Mass Flow Controller 3 gas way mass flow controller
Flowmeter Core 304 stainless steel
Measure Accuracy +/- 1.0% F.S
Pressure Range -0.1~0.15MPa
A way gas range 0~100SCCM
B way gas range 0~200SCCM
C way gas range 0~500sccm
Vacuum Pump 4C
Power Supply AC220V  50Hz

Our product such as lab ball mill and compact muffle furnace are widely sold to
America, UAE, European, South Africa etc. With Own R&D team and factory.

For more laboratory equipment, please click here to visit our website.

https://www.hnchengyi.com/cvd-syst , em/chy-t1260a-3z4c-cvd-system.html

Minimum Order: 1 sets
