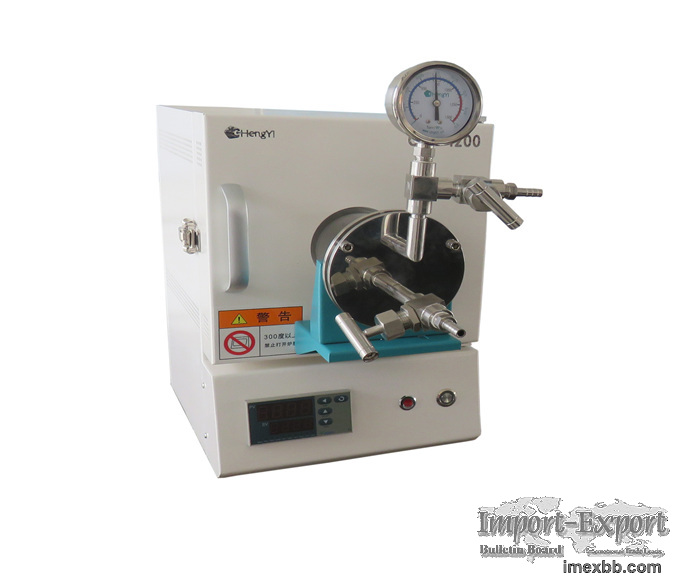

CHY-H1210 Compact 1200 degree Muffle Tube Furnace for multi using

CHY-H1210 Compact 1200 degree Muffle Tube Furnace for multi using laboratory
Muffle Furnace muffle furnace manufacturer

1.100*100*100mm chamber dimension
2.high quality ceramic fiber chamber
3.PID Programmable controller
4.Muffle Furnace/Tube Furnace multi-function using
5.Made by Henan Chengyi

Muffle Furnace APPLICATION
1.laboratory heat thermal processing cement, building materials industry etc
2.Pharmaceutical medicines inspection, preteatment of medical sample
3.Analytical Chemistry Industry: water analysis and environmental analysis
4.Analysis of coal quality,determine moisture, ash, volatile matter, ash
melting point analysis, gray component analysis, and elemental analysis

PRODUCT PARAMETERS
Product Name 1200 Degree Muffle Tube Furnace
Model H1210
Furnace Door side open type
Display Model Highlight LED display
Maximum Temperature 1150℃
Working Temperature ≤1100℃
Heating rate ≤20℃/min  Suggest:10℃/min
Heating zones Single heating zone
Hearth dimensions 100mm×100mm×100mm
Hearth volume 1L
Tube Size O.D60*270mm
Sealing method Vacuum sealing flange
Vacuum degree 10-3Pa with Turbo pump system
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Temperature curve 30 segments programmable
Over heat alarm Have
Overcurrent protection Have
Thermocouple Failure Protection Have
Temperature measure element K-type thermocouple
Heating Element Fe-Cr-Al Alloy doped by Mo
Hearth Material high purity alumina fiber
After-sales service 12 month warranty, durable maintaince and repair
support
Power Supply 220V  50HZ
Rated power 0.75kw
Overall dimensions 400×400×450 (mm )
Packing 3-ply wooden case
Accessories plate,protective glove,crucible hook,crucible tongs,quartz
tube,vacuum flange,user manual.

Our compact 1200c muffle furnace is electrically heated with coil heating
elements supported on ceramic tubes generally provided on both side wall and
back wall.

Founded in 2013, CHENGYI is a manufacturer of lab equipment. We not only can
supply standard lab equipment, but also we do customized as request. We
sincerely welcome worldwide friend come to visit us!
