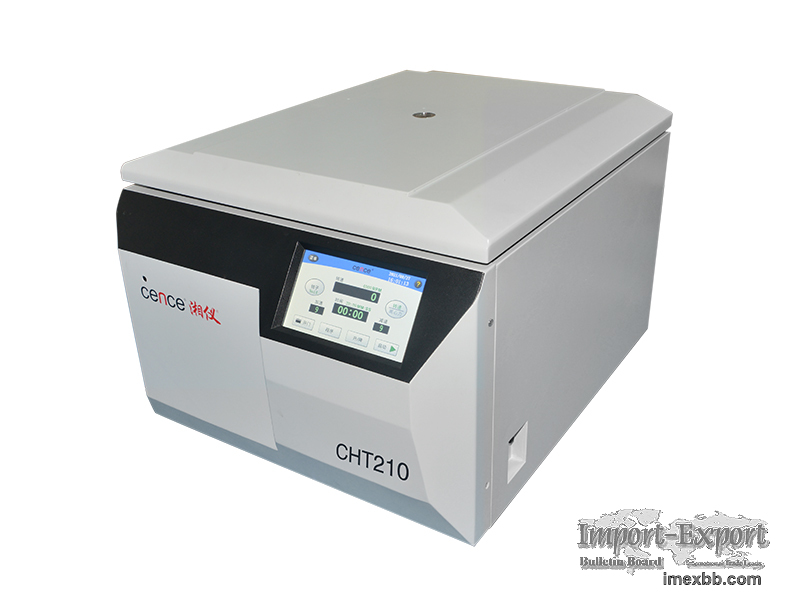

CHT210 4x750mL Large Capacity High Speed Centrifuge

Large Capacity high capacity centrifuge CHT210

CHT210 centrifuge can be equipped with 4x750mL swing rotor with rectangular
bucket, which can separate 36 50mL conical tubes, or 88 15mL conical tubes, or
168 7mL vacuum blood collection tubes at one time.

It only takes 15 seconds to accelerate from 0 rpm to 21,000 rpm.

The rotor, rotor bucket and adapter can be autoclaved.

Advantages Of CHT210 Large Capacity Centrifuge
Equipped with a 7-inch high-sensitivity and high-definition (800*480) touch
screen, it can be operated directly with gloves on. The operation procedure is
simple, and the display is intuitive.

The setting parameters and operating parameters can be displayed on the screen
at the same time, making the data more intuitive and easy to understand.

You can directly input values through the touch screen to set parameters,
making the operation faster and more convenient.

The speed or centrifugal force can be set quickly, and the display of
centrifugal force and speed can be switched with one key (the machine itself
will calculate the speed corresponding to the centrifugal force or the
centrifugal force corresponding to the speed in real-time).

Up to five groups of programs can be selected at one time to realize step
centrifugation so that the experiment can be diversified and multiple steps can
be executed in place at one time.

100 groups of programs can be set, and each group of programs can be easily
named. In this way, it is convenient to call and distinguish different
experiments during use and realize the repeatability of experiments.

There are 11 acceleration rates, and 12 deceleration rates, and the 10th is a
custom rate. The acceleration and deceleration time can be customized according
to the experimental requirements.

The operation records and fault records are automatically saved, and the
operation status of the instrument and the separation status of each batch of
samples can be checked at any time.

CHT210 centrifuge adopts AC frequency conversion motor. This kind of motor has
the advantages of no carbon powder pollution, maintenance-free, long service
life, and accurate speed control accuracy (less than 10r/min).

The maximum capacity that can be centrifuged is 4x750mL, and it can be equipped
with an airtight centrifuge basket to ensure safe centrifugation and no
pollution.

There are 14 applicable rotors available. All test tubes, test bottles, and
working plates with capacities of 0.2mL to 750mL can be adapted through
different rotors. These make this centrifuge capable of high-speed and large-
capacity centrifugation, and its versatility can meet all requirements based on
centrifugal application needs.

Technical Parameter Of CHT210 Large Capacity Centrifuge
Brand Cence
Centrifuge Model CHT210
Max. Speed 21000 rpm
Max. RCF 30642 x g
Max. Capacity 4x750 mL
Speed Accuracy ±10 rpm
Time Setting Range 1 s to 99 min. 59 s, or 1 min. to 99 hr. 59 min.
Timing Mode Start timing after spinning, start timing after reach setting
speed, continuous timing, Short spinning
Noise Level ≤65 dB(A)
Short Spinning Yes
Rotor Identification Yes
Power Supply AC 220 V ± 22 V, 50/60 Hz
Max. Power Consumption 900 W
Dimensions (W x D x H) 510 x 635 x 398 mm
Packing Dimensions (W x D x H) 660 x 770 x 450 mm
Weight 76 kg
As a professional laboratory centrifuge supplier, we provide fixed angle and
swing bucket rotor, large capacity centrifuge, 96 well plate centrifuge, 96
well plate template, etc. For more information, please feel free to contact us!

Minimum Order: 1 sets
