Chrom-LinX® Empty Chromatography Column

Chrom-LinX® large glass chromatography columns can be divided into two designs:
single and double adjustable cylinder. The single adjustable cylinder design
mainly consists of adjustable cylinder, column tube and fixed cylinder. The
double adjustable cylinder design replaces the fixed cylinder with an
adjustable cylinder to extend the volume range that can be loaded. Chrom-LinX®
laboratory grade chromatographic column is standard with 10 μm screen
(optional 5 μm screen) and is compatible with common tomographic fillers of
different particle sizes.

Chrom-LinX® laboratory grade chromatographic columns are made of biocompatible
materials with good chemical tolerance. It is compatible with common aqueous
solutions and most organic solvents, but does not tolerate chlorinated
hydrocarbons, acetone and other ketones, fatty esters and phenol, etc. At the
same time, it is prohibited to use under the condition of containing more than
2 M NaOH, 1 M HCl, other strong inorganic acids, 75% acetic acid solution.

Please be advised that this product is only available for sale and after-sales
support in certain regions. For further details, kindly consult with your local
sales representative. Thank you for your understanding.


Features and Benefits of Chrom-LinX Laboratory Grade Empty Columns
User-friendly design: Ergonomically design the components for easy grasping and
handling.

Clear view: Equipped with a measurement scale of glass tube for easy to predict
and reach a predefined bed height and improving process reproducibility.

High pressure resistance: compatible with common resins of different particle
sizes allowing operation up to 20 bar* (2 MPa, 290 psi) pressure.

Various sizes: Glass tubes with inner diameter (i.d.) of 10 mm, 16 mm, 26 mm or
50 mm, and bed height of 200 mm, 400 mm, 700 mm or 1000 mm provide a wide range
of column volumes.

High flexibility: Equipped with single/double adjustable capital for flexible
expansion of column volumes.

Easy to clean: Each component for easy assembling removing and cleaning.

Compatibility: Supplied with tubing and connectors suitabling for a variety of
common laboratory tomographic systems.

*The columns withstands pressures up to 7 bar (0.7 MPa, 101.5 psi) with 50 mm
inner diameter.

Product Characteristics of Chrom-LinX Laboratory Grade Empty Columns

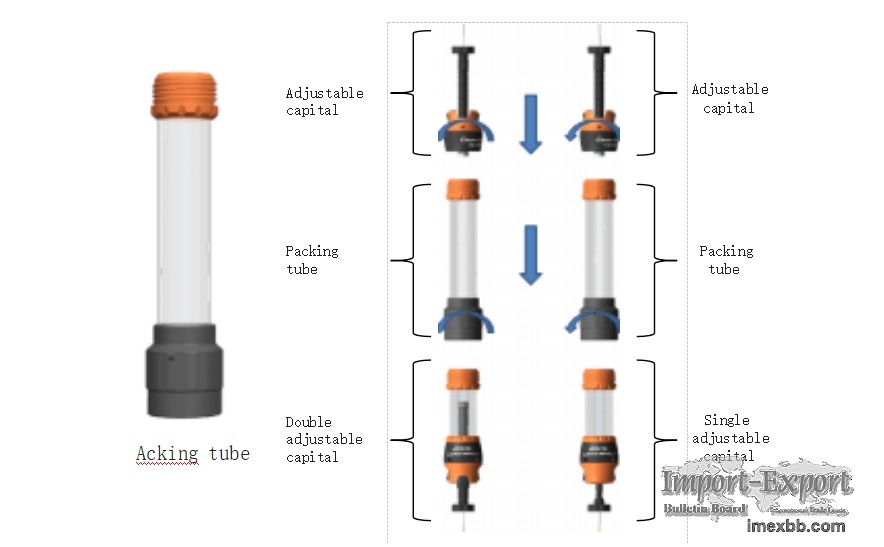

Chrom-LinX® laboratory grade empty chromatography column are divided into two
designs: single adjustable capital and double adjustable capital. The design of
single adjustable capital mainly consists of an adjustable capital, a
chromatography column tube and a fixed capital. The design of double adjustable
capital replaces the fixed capital with an adjustable capital to extend the
column volume (Fig 2).

Chrom-LinX® laboratory grade empty chromatography columns is standard equipped
with 10 μm net ring (5 μm net ring being also optional), which is compatible
with common resins of different particle sizes.

Chemical Resistance of Chrom-LinX Laboratory Grade Empty Columns
Chrom-LinX® laboratory grade chromatography columns empty are made of
biocompatible materials with good chemical tolerance. The columns can be used
in aqueous solutions and almost all the organic solvents commonly used in
liquid chromatography of macromolecules. The columns intolerant of chlorinated
hydrocarbons, acetone and other ketones, aliphatic esters, and phenol. The
columns are not allowed to use the solution containing more than 2 M NaOH, 1 M
HCl, other strong mineral acids, or 75% acetic acid.
