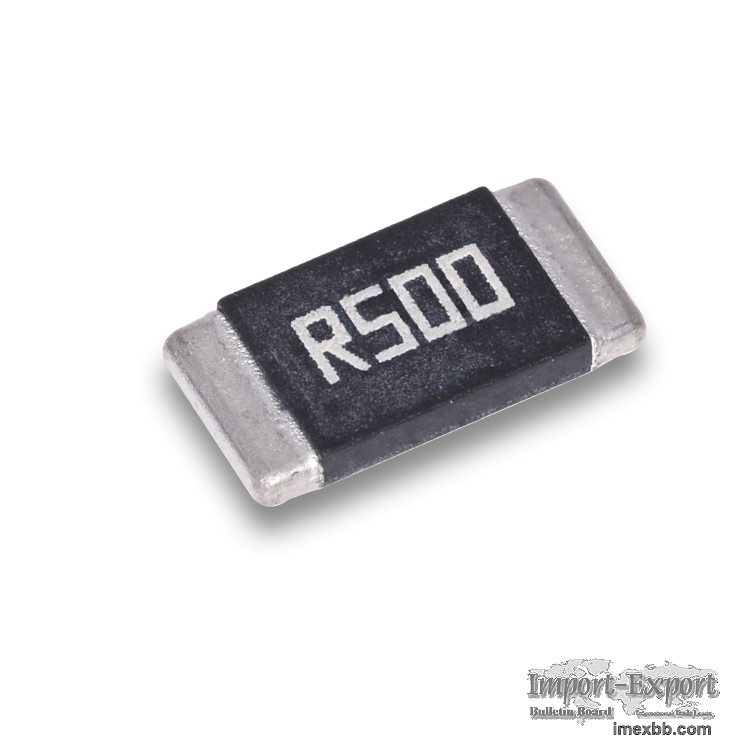

chip resistors

Introduction of alloy chip resistors
Introduction of PAGOODA alloy chip resistors:
Regular series: 1206, 2010, 2512, 2725, 2728, 2817, 4527;
Resistance range: 02mR~1000mR
Rated power: 05W~3W
Error:+01%±0.25%±0.5%,±1%,±5%
The maximum power of alloy resistors can reach 3W, and the minimum TCR is
±50PPM/℃. It is suitable for reflow soldering and wave soldering. It is
suitable for current detection resistors, such as power supply circuits and
engine circuits. since
The dynamic mounting equipment is matched with high mechanical strength,
superior high frequency characteristics, and meets the requirements of the
RoHS directive.
Mainly used in overcurrent protection of switching power supply audio
equipment, voltage regulators, power converters, chargers, car engine
controllers, portable equipment, etc.

Minimum Order: 4000 pieces
