China Wholesale Malleable Iron 130 Equal Tee BSPT Thread Factory

Code:130
Size: 1/8”-6”
Material: BS EN 1562,EN-GJMB-350-10,KTH350-10
Dimension: BS EN 10242
Thread: ISO 7-1,BS 21,BSPT
Pressure Rating: PN16/PN25
Surface Treatment: Hot-dip Galvanized,Electro Galvanized,Black
Certificate: UL Listed / FM Approved / NSF 61
Application: Fire Protection, Waterworks, HVAC, Plumbing, GAS, Irrigation, or
other piping systems



Products Details
Malleable Iron pipe fittings 130 Equal Tee . Code is 130. Main outlet and branch
outlet is same. We have three type tee, heavy type tee with UL/FM certificate
,medium type tee and light beaded tee. According to the Surface treatment, hot dip
Galvanized tee ,electro plate Galvanized tee or cold Galvanized tee ,and black
tee. According to the Threaded Standard, there are have NPT Thread tee ,BSP thread
tee ,and ISO228 thread tee. If the main outlet and branch outlet is difference ,we
called it is Tee reducing.

How are fittings classified?
Pipe fittings (Pipe fitting) is a general term for the parts and components in the
pipeline system that play the role of connection, control, direction change,
diversion, sealing, support and so on.

Steel pipe fittings are all pressure-bearing pipe fittings. According to different
processing technology, it is divided into four categories, namely butt welded pipe
fittings (there are two kinds of welded seams and no welds), socket welding and
threaded pipe fiats, and flange pipe fittings.

By use:
1. The pipe fittings used for connecting pipes to each other are: flange, union
joint, pipe hoop, clamp, ferrule, throat clamp, etc
2. Pipe fittings that change the direction of the pipe: elbow, elbow.
3. Pipe fittings that change the diameter of the pipe: reducer (reducer), reducer
elbow, branch pipe table, reinforcing pipe.
4. Increase the pipe fittings of the pipeline branch: tee, four-way.
5. Pipe fittings for pipeline sealing: gaskets, raw material belts, line hemp,
flange blinds, pipe plugs, blinds, heads, welding plugs.
6. Pipe fittings for pipeline fixation: snap rings, drag hooks, lifting rings,
brackets, brackets, pipe cards, etc.

Application and Case
Products are used in fire protection system, water system, HVAC system, plumbing,
gas system, irrigation system, etc.These products are used in many projects , such
as Beijing Airport, Shanghai World Trade Center, Canton Tower and other famous
landmark projects.

Minimum Order: 1 tons

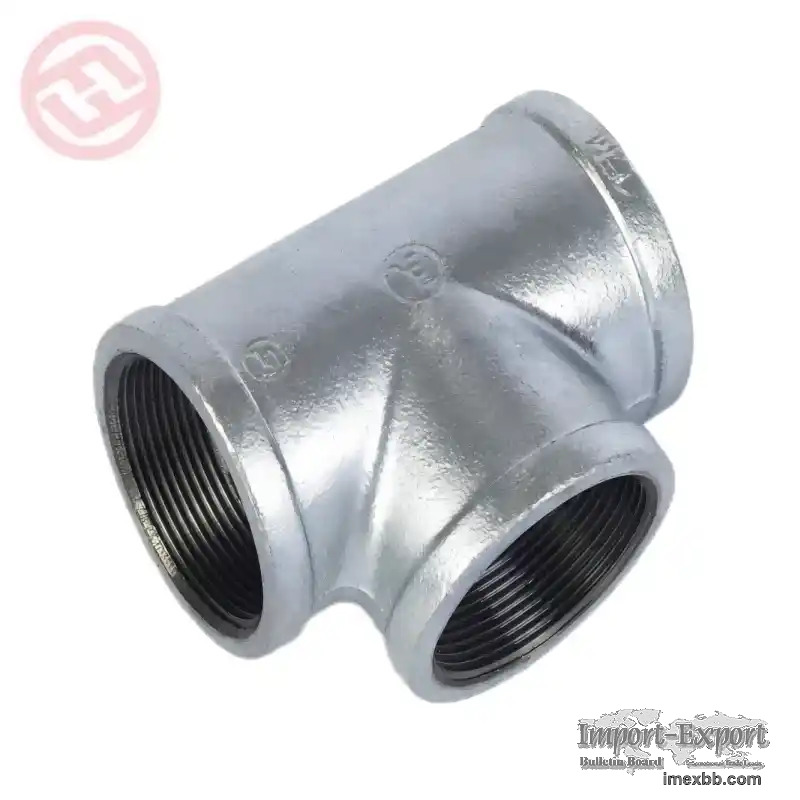

China Wholesale Malleable Iron 130 Equal Tee BSPT Thread Factory
