China Malleable Iron 1221 Side Outlet Elbow BSPT Thread Supplier

Code:1221
Size: 1/2”-1”
Material: BS EN 1562,EN-GJMB-350-10,KTH350-10
Dimension: BS EN 10242
Thread: ISO 7-1,BS 21,BSPT
Pressure Rating: PN16/PN25
Surface Treatment: Hot-dip Galvanized,Electro Galvanized,Black
Certificate: UL Listed / FM Approved / NSF 61
Application: Fire Protection, Waterworks, HVAC, Plumbing, GAS, Irrigation, or
other piping systems



Products Details
Malleable Iron 1221 Side Outlet Elbow. A side outlet elbow is a pipe fitting used
to change the direction of a pipe, usually to a 90-degree angle. It is called a
“side outlet” because it allows pipes to be connected horizontally while also
diverting flow in different directions, usually vertically or diagonally. These
fittings are commonly used in drainage and ventilation systems, particularly in
areas where pipes need to pass through corners or connect to different parts of
the pipe network.

Side outlet elbows offer several advantages in piping systems:
1. Direction Change: Side outlet elbows allow pipes to effectively change
direction, especially when vertical or diagonal changes from horizontal pipes are
required.
2. Space Optimization: In tight spaces or areas where pipes need to maneuver
around obstacles, side outlet elbows provide a compact solution, allowing pipes to
change direction without the need for additional fittings.
3. Versatility: Side outlet elbows offer versatility in duct configurations,
allowing for a variety of layouts and designs while maintaining proper flow
direction and functionality.
4. Reduce leaks: Properly installed side outlet elbows with the correct seals and
connections help minimize the risk of leaks when the direction of your ductwork
changes.
5. Aesthetics: These fittings allow for cleaner turns and transitions between
horizontal and vertical pipes, giving the pipe installation a cleaner, more
organized appearance.
6. Easy to Install: Side outlet elbows are relatively easy to install, saving time
and effort during the assembly of your piping system.
Overall, the advantages of side outlet elbows contribute to efficient and
effective duct design, ensuring proper drainage and ventilation within the
building infrastructure.

Minimum Order: 1 tons

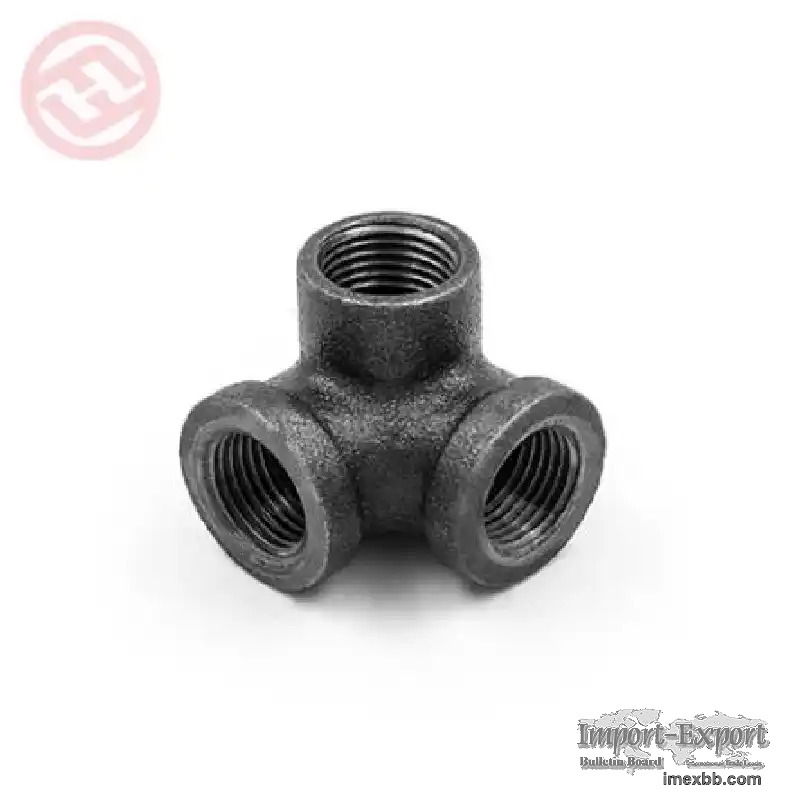

China Malleable Iron 1221 Side Outlet Elbow BSPT Thread Supplier
