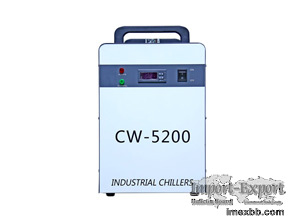

Chiller CW 5200 For 8KW CNC Spindle

Chiller cw 5200 is a small intelligent water chiller, suitable for cooling the
spindle of numerical control equipment below 8kw, and used to cool the heat
generated by the spindle when it is working. The cooling capacity of industrial
chiller cw 5200 is 1400W, with ultra-high temperature control accuracy of
±0.3℃, and the ultra-intelligent dual-mode temperature control system can
meet the different needs of users in many industries.

Advantage Of Chiller CW 5200 For 8KW CNC Spindle
1400W cooling capacity, optional environmentally friendly refrigerant R-
1340A/R-410A.
Multi-national power specifications can be selected: European standard,
American standard, German standard, Australian standard, etc., CE
certification.
The temperature control accuracy is ±0.3℃.
Optional heater (applicable in winter or cold areas).

Specification Of Chiller CW 5200 For 8KW CNC Spindle
Model CW-5200AG CW-5200BG CW-5200DG CW-5200AI CW-
5200BI CW-5200DI
Voltage 220V 220V 110V 220V 220V 110V
Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz
Current 2.4~3.1A 2.6~3.3A 4.5~6.5A 2.4~3.1A
2.6~3.3A 4.5~6.5A
Compressor power 0.52KW 0.5KW 0.68KW 0.52KW 0.5KW 0.68KW
Refrigeration capacity 1.49KW 1.46KW 1.56KW 1.49KW 1.46KW 1.56KW
Refrigerant R-22 / R-134a / R-410a
Refrigerant charge 360g 380g 350g 360g 380g 350g
Precision ±0.3℃
Reducer Capillary
Protection Over current protection for compressor, flow alarm, over-
temperature alarm
Pump power 43.2W
Tank capacity 9L
Inlet and outlet External Φ10mm brass connector Φ10mm speedy connector
Max. lift 10 M 25M
Max. flow 16 L/min 16 L/min
N.W 29Kgs
G.W 31Kgs
Dimension 56 X 28 X 47 cm (L X W X H)
Package dimension 72 X 44 X 57 cm (L X W X H)

Application Of Chiller CW 5200 For 8KW CNC Spindle
Suitable for cooling the spindle of numerical control equipment below 8kw.

More Details Of Chiller CW 5200 For 8KW CNC Spindle
Small Size And Easy To Move
Two Temperature Control Modes Are Optional, Easy To Operate
The Alarm Output Signal Port Has Multiple Protection Functions, And The Power
Connector Is Equipped With A Backup Fuse

Xintchillers is a reliable water chiller manufacturers, we provide cnc spindle
chiller, fume extractor, portable welding fume extractor and etc. Want to know
more Please contact us now.
