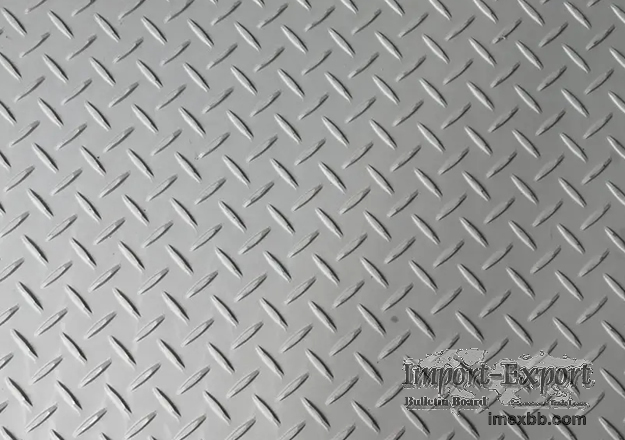

Checkered Plates for Flooring

Floor Checker Plate, sized as 4500 X 2230 X 5.00 mm thickness of which will be
4-4.5 mm without checker and with checker the thickness will be 5-5.2 mm.
Length of checkers will be 35 mm and width will be 5 mm and distance between
the checkers will be 8 mm.


Checkered Plates 12 mm :
Material Grade : ASTM A36.
Thickness : 12 mm.
Shape/Dimensions : two-way raised pattern, pattern shall be conform to ASTM
A786
Bearing bar for flooring : plate 6 mm x 50 mm or 12 mm x 25 mm.
Trim band for flooring : plate 6 mm x 25 mm or 12 mm x 25 mm.
Backing plates for flooring: plate 3 mm x 25 mm.
Toe plate around opening : plate 6 mm x 100 mm.
Checkered Plates 8 mm (optional):
Material Grade : ASTM A36.
Thickness : 8 mm.
Shape/Dimensions : two-way raised pattern, pattern shall be conform to ASTM
A786

Aluminium Checker Plates for following Items
Chequerd Plate, Raised pattern type: Five bar
Size: 8’ x 4’ x 5 mm Thk. Material Al. 6061
Chequerd Plate, Raised pattern type: Five bar
Size: 8’ x 4’ x 5 mm Thk. Material : Al. 3003
Chequerd Plate, Raised pattern type: Five bar
Size: 8’ x 4’ x 5 mm Thk. Material : Al. 1060
Aluminium Checker plates ( 5 Pattern ) Grade 5754 H114 - 5 mm thickness

We offer stainless steel, steel, and aluminium checker plate 1000x20000

Plates steel Checkered Quality ASTM
size 6.35 x 4' x 8'
the mill has to deliver ISO 9001 certification
3mm and 6mm Checker plate (5 bar)
raised pattern height for a 3/8" thick ASTM A36/786 checkered plate
1 bar and 2 bar checke plate sheets an d size of sheet to use it on cupboards
2mm thk galvanised/zinc coated steel chequer plate.
