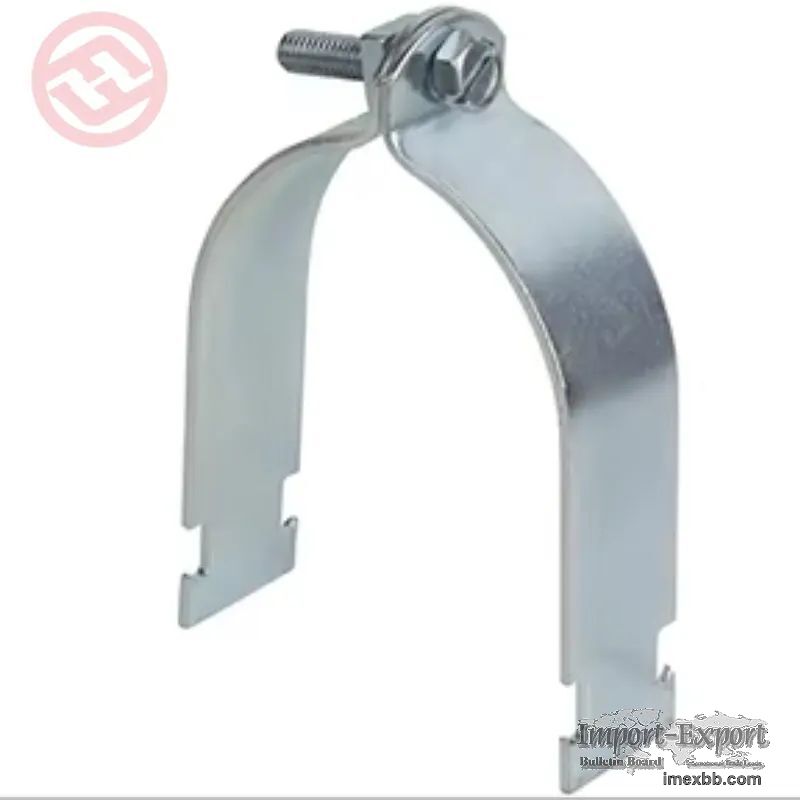

Channel Steel Pipe Clamp

Size: 3/8”~ 8”
Certificate: ISO
Material: Carbon Steel
Standard: MSS SP-58, ASME B18.31.3 / DIN 975, GB/T 15389
Surface: Pre-galvanized / electro-galvanized/Hot-dip galvanized
Application: Non-insulated stationary pipeline

What’s the channel steel pipe clamp?
Channel steel pipe clamp aslo called P type clmap. is a type of pipe support
used to secure and hold pipes in place, often within a channel. The clamp is
designed to fit within a channel, providing a secure hold for pipes. It
typically consists of a U-shaped or V-shaped bracket that wraps around the
pipe.

DRAWING：

Benefits:
1. Stability: Provides a secure hold, preventing pipes from moving or
vibrating, which can cause damage or noise.
2. Ease of Installation: Designed for quick and easy installation, often using
standard tools.
3. Versatility: Compatible with various pipe sizes and types, making them
suitable for a wide range of applications.
4. Durability: Constructed from robust materials that can withstand harsh
environments and heavy loads.
Installation:
1. Positioning: Determine the position where the pipe hanger needs to be
supported within the channel or strut.
2. Securing the Clamp: Place the pipe clamp around the pipe and align it within
the channel or strut.
3. Fastening: Use bolts, screws, or threaded rods to secure the clamp to the
channel or strut, ensuring a tight fit.
4. Adjustments: Adjust the clamp as necessary to ensure the pipe is properly
aligned and supported.
As a respected fire accessories manufacturer in China, FLUID-TECH takes great
pride in providing a wide selection of high-quality accessories at competitive
wholesale prices.
