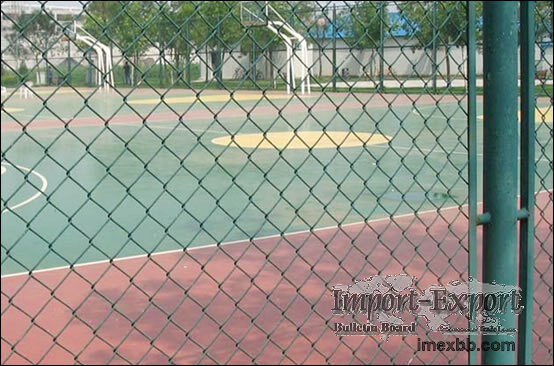

Chainlink Fence

Galvanized and Plastic Vinyl Coated Chain Link Fencing System
Chain link fence is mainly used for playground and gardens, highway, railway,
airport, port, national borders, temporary control, residence and garden
fencing.

Finishes: Hot dipped galvanized, electro galvanized, plastic / vinyl / pe
coated, aluminised ( metallic coated) steel.
Coated colors: Bright metallic, beige, green, black, beige, grey, others.

Main Products Delivered
Aluminized Steel Chain Link Mesh Fence
Aluminium Powder Coated Steel Rhombus Wire Mesh Fence
Modular meshes: Aluminum powder coated chain link mesh 50 x 50 mesh x 10 gauge
Mesh shape: Rhomb hole / diamond hole
Panel size: 3m height x 2600m length
Strands of aluminized barded wire: 2.2mm diameter
Straight barbed wire: 2.5mm diameter.
Barbed wire spring (for making wire barbs) : 2.2mm diameter.
Line straining wire (straight wire): 4.0 - 5.5mm diameter.
Galvanized Chain Link Fence System of Diamond Wire Mesh
Hot Dip Galvanized Chain Link Fence
Steel fencing system is composed with following parts:
50x50x4mm galvanized mesh
Hole shape: Diamond
Diamond mesh: 50mm
Mesh wire: 3mm galvanized, zinc aluminum galvanized 366gr/m2 , 150Kg
Barbed concertina with clips: Diameter circle =900mm, L= 600m



PVC Coated Chainlink Fence System: Mesh Panels and Barbed Wire

Steel Security Mesh Fencing, Galvanised and PVC Coated

Chain link fence system for fencing project in USA
with the following specification:

Mesh panels: PVC coated chainlink 1” x 12 gauge
Barbed Wire (four strands)
Barb Wire Galv Outrigger
Posts
Corner Posts
Post Stretchers
PVC coated Barbed wire: thickness 3 mm after coated
Support arm angle 45 degrees : contains 3 slots to enter Barbed wire.

High Security Chainlink Fencing, with Concertina Wire

Border fencing system and military uses fencing
Structures:
Chain link fence, fencing posts, barbed tape concertina, arm support.
All parts are galvanized and pvc coated (green)

Chain Link Fence Panels and Concertina Barbed Wire Coils

Fence Materials: MS/ mild steel wire.
Wire Diameter: 3mm (10 SWG Gauge).
Opening: 55mm X 55mm Mesh.
Fence Width: 2.62 meter and length - 15 m per roll.
Finishes: Green PVC Coated galvanized mild steel.
Helically wound mesh 3.15 mm diameter wire
Fence posts / pillars materials: galvanized and pvc covered with green color
Length of column: 2600 mm
Post diameter: 2.5 inches
Wall thickness : 3 mm
Concertina razor barbed wire: Razor wire dia 760 mm/56 cycles - extended length
10-12 mtr/coil steel or galvanised steel.
