Chain Link Security Fencing

Tripline exports chain link fencing to Africa, Middle East, South America,
Caribbean, Australia and other countries.

Supply of Chain Link Fence (high tensile, galvanized mesh ) and metal gates for
African projects
Hot dip galvanized chain link fencing with gates

Chain Link Fence and Metal Gates

In rolls
Specification for fence material as follows:
Chain link fence material:
High tensile wire, 2.5mm diameter
Mesh size 50 x 50mm
Hot dip galvanized
8 feet wide x 30m roll

Specification for Pedestrian gates as follows:
Gates posts 160mm dia, 3.60mm thickness, length 2650mm
Overall diameter of gate frame 76mm, 2.6mm thickness
Width of gate: 1 wing, 1500mm
Wire mesh, 2.5mm diameter, mesh size 50x50, hot dip galvanized, ground to top
height 2.00m.
Galvanized coating for gate and frame as per DIN2448 equivalent International
Standards with related accessories such as braces, gate lock, cap lock, etc.

Specification for Vehicular Gates as follows:
Gates post 160mm diameter, 3.60mm thickness, length 2650mm
Overall diameter of gate frame 76mm, 2.6mm thickness
Width of gate: 2 wing, 1500mm each
Wire mesh, 2.5mm diameter, mesh size 50x50, hot dip galvanized, ground to top
height 2.00m.
Galvanized coating for gate and frame as per DIN2448 equivalent International
Standards with related accessories such as braces, gate lock, cap lock, etc.

Supply of PVC Coated Chain Link Fencing System & Gates

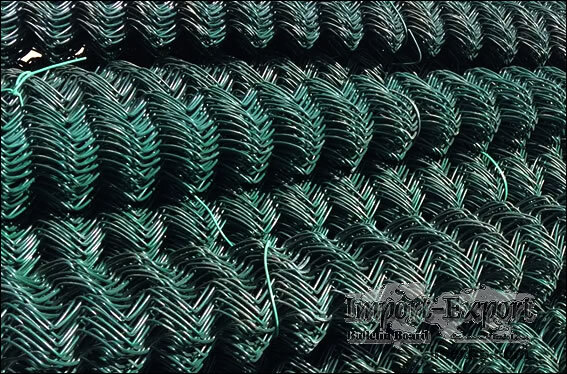

Plastic Coated Galvanized Mesh Chain Link Fencing

FENCE WORKS

FENCE
PVC coated chain link fencing mesh size=50×50mm Ø3.55/4.75mm (or similar),
1.9m hight
CORNER/END TERMINAL POST ∅90 mm;3.338&2.5*2m longth;4.5 mm THICKNESS (OR
SIMILAR) & BRACES WITH ARMS AT 50.0 m C/C AND AT ALL CHANGES IN DIRECTION
LINE POST ∅75 mm; 3.338m LONGTH; 3.25 mm THICKNESS (OR SIMILAR) AT EVERY 3.00 m
MAXIMUM
PVC coated tension line wire in top row Ø3.55/4.75mm (or similar)
PVC coated stirrup wire Ø25/3.55mm (or similar)
PVC coated tie wire Ø25/3.55mm (or similar)
Galvanized barbed wire Ø2mm (or similar)(3rows)with point bars at every 60
centers
Stretcher bar (20×5 thick approximately)

Acessorie
PVC caps: Used to seal the end of the pipes.
Cleats: For fixing line wires & diagonal supports
Rail end Cap: Used to fix Diagonal supports
M10 x 150 LONG Nut & Bolts: For fixing stretcher bar
Eye Bolts: For fixing barbed wires
ON INSIDE OF FENCE LINE

ACCESS GATE
Mechanized gate (including 1 removable post, doorpost and door stopper)
7×2.45m
Pedestrian access gate



Drawing of chain link fence:

Material Finish: All hot dip galvanized steel shall conform to ASTM A123/A123M.
Wire materials: All wires conform to ASTM F688.
Chainlink fencing: conforming to ASTM F1916



Double Leaf Access Gate
Materials:
Mild steel pipe bracings
Both sides padlock
Gate frame: Mild steel pipe frame
Truss rod diagonal bracings with turnbuckle
Mild steel pipe gate post
Panel infill: Pvc coated galvanized mesh 50x50 chain link type
Pvc coated line wire
M10x150 long nut and bolt
