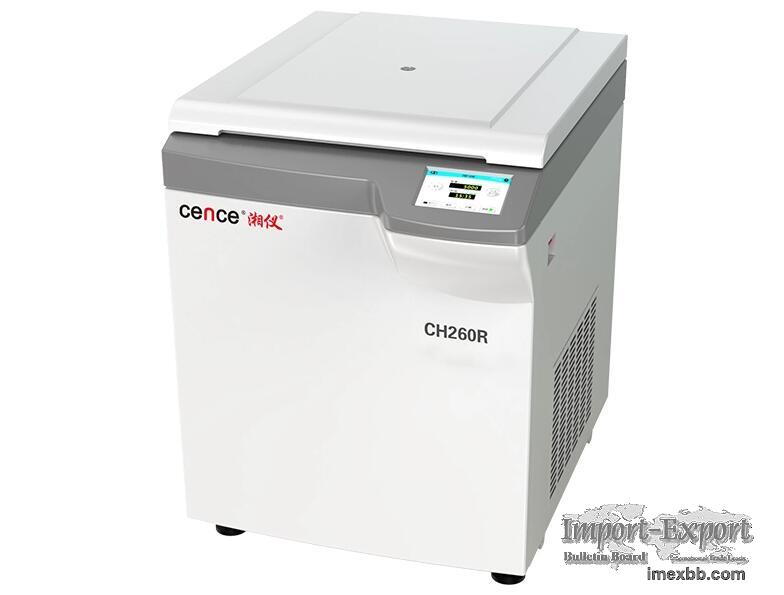

CH260R 6x1000mL High Speed Refrigerated Centrifuge

CH260R Large Capacity High speed vacuum centrifuge

Centrifuge CH260R has obtained a number of patented technologies. It is the
latest intelligent high-efficiency centrifuge developed by Xiangyi/Cence.
Powerful system management function with different operation options for
different applications greatly simplify the experiment management. 16 rotor
options, which can separate and concentrate cytoplasm, virus bacteria and
chemical substances. It is widely used in high-tech fields such as molecular
biology, biology and biochemistry.

Advantages Of CH260R Vacuum Centrifuge
Direct drive motor without replacing the belt.

The intelligent vacuum friction reducing system has a simple and effective
sealing structure. The sealing part does not need to be coated with vacuum
silicone grease, and all sealing parts do not need special maintenance.

New generation dynamic intelligent control system, user operate the centrifuge
according to conventional centrifuge use method without additional operation.

Excellent energy consumption performance. Save up to 65% energy consumption
compared with traditional centrifuge.

Adopt AC variable frequency motor, speed accuracy ± 10 r/ min. Unique motor
bearing heat dissipation patent makes the motor bearing always work in the best
state and greatly improves the service life of the motor. ( patent NO:
zl201922481254.0 )

The flexible driving device of centrifuge with protection, which makes the
rotor spinning extremely smoothly, meanwhile, continuously detect the unbalance
state of the rotor in operation. Which greatly improve safety in centrifugation
process. This technology has obtained national patent ( Patent NO:
ZL201720768513.6 )

The centrifuge door lock with labor-saving operation and good safety has won
national patent ( Patent NO: ZL201420116441.3 )

316 stainless chamber and unique copper pipe configuration technology, not only
make the refrigeration efficiency extremely high, but also the overall
corrosion resistance is excellent ( Patent NO: ZL201720981827.4,
ZL202020709292.7 )

The self-developed high-speed centrifuge bottle can not only bear high
centrifugal force but also disinfect at high temperature without
deformation(121℃, 15min), ( Patent NO: ZL201720768611.X)

Ergonomic height design ensure easy sample loading and unloading and easy
cleaning.

Convenient installation of the rotor without the help of any tools, just put
rotors on Rotor shaft without screw fixing or buttons' operation.

All the alloy aluminum rotor are forged with 7075 series alloy aluminum, hard
oxidation on the surface and strong corrosion resistance.

Improve productivity with new generation carbon fiber rotors, an advanced
alternative to metal rotors, offering unequalled durability with fatigue- and
corrosion-resistance for worry-free operation spin after spin.

Glove-friendly 7-inch HD touch screen, intuitive display and easy to operate.
The setting parameters and running parameters can be displayed simultaneously.

Directly input the setting value without adjustment, more convenient compared
with traditional knob operation.

Powerful control system offering the function of 5-steps gradient separation,
sample ID, startup at appointed time, the mode of profiles, free choice of
programs and multiple operation language option.

Strong safety performance, the user management function prevent programs from
unexpected modification or deletion.

Safe and reliable centrifugation, max speed up to 26000rpm, and many rotors are
available to choose from.

Technical Parameter Of CH260R Vacuum Centrifuge
Model CH260R
Order No. 202253007
Max. Speed Angle Rotor 26000r/min
Swing Rotor 4000r/min
Max. RCF Angle Rotor 80035xg
Swing Rotor 3500xg
Max. Capacity Angle Rotor 6x1000ml
Swing Rotor 4x750ml
Time Setting Range 1min to 99h59min, HOLD
Timing Mode Start timing after spinning, Start timing after reach setting
speed, Short spinning or Continuous timing, Operation at an appointed time
Temperature Setting Range -20℃ to 40℃
Temperature Accuracy ±1℃
Speed Accuracy ±10r/min
Speed Range 100RPM to Max. speed with step 100RPM（speed step can be
customized, multiple of 10）
Rotor Identification Yes
Steps Centrifugation Yes (100 programs, each programs with 5 steps, More
programs can be saved by adding external memory card)
Pre-cooling Function Yes
Compressor Unit High Performance Compressor Unit; Environment-friendly
refrigerant（R404a）
Protection Function Imbalance Protection, Rotor Identification, Door Lid
Anti Pinch Protection, Motor Overheating Protection, Over-speed Protection and
Over-temperature Protection
Motor AC Variable Frequency Motor
Power Supply AC 220±22V 50Hz
Power Consumption 1.7kW
Noise ≤65dB（A）
Dimension (WxDxH) 730x930x960（mm）
Packing Dimension (WxDxH) 880x1120x1180（mm）
Net Weight 260kg

Xiang yi centrifuge provide centrifugal vacuum concentrator, centrifugal vacuum
evaporator, ultracentrifuge vacuum, etc. For more information, please feel free
to contact us!

Minimum Order: 1 sets
