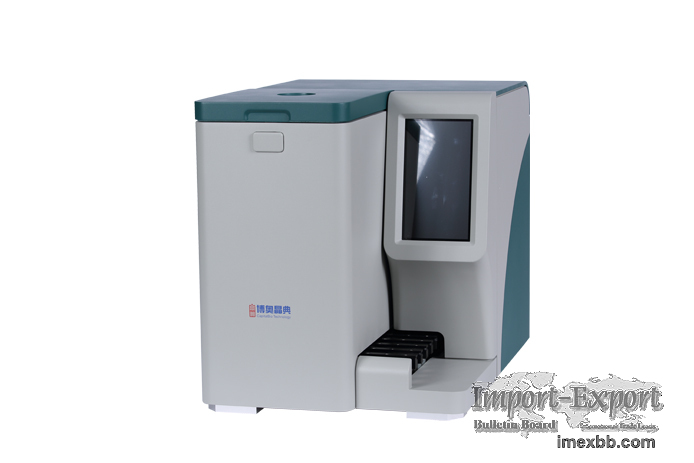

Centrifugal Heat Sealing Machine

Centrifugal heat sealing machine has chip centrifugation and chip heat sealing
functions that can be used simultaneously without interfering with each other.

The shell, heat sealing module, centrifugal module, control unit, and touch
screen comprise the centrifugal heat sealing machine. It is suitable for
centrifugal injection and heat sealing blocking after SNP chip injection, so
that the SNP chip forms an independent reaction chamber. Prevent inter-sample
interference.

Features of Centrifugal Heat Sealing Machine
The heat-sealing process can be performed on four chips simultaneously.

Display on a sizable screen, easily adjustable settings

Thermostats utilizing digital PID technology provide precise temperature
regulation.

Completely enclosed, dependable operation

Cross-contamination is prevented owing to the reaction chambers' isolation from
one another.

Specification of Centrifugal Heat Sealing Machine
Chip size (75±0.50)mm×(25±0.25)mm×(2.00±0.10)mm
Proc , essing throughput 250 chips/hour
Temperature range 150~180 ℃
Temperature Precision ±1℃
Blocking time 1~99s
Capacity 2,4 microfluidic chips
Working speed 8000rpm
single centrifugation time 1 min
Dimension (L×W×H) 470mm×345mm×400mm
Weight 45kg

As a professional microarray company, we provide whole mitochondrial genome
analysis, life sciences instruments, genome sequencing service, etc. For more
information, please feel free to contact us!
