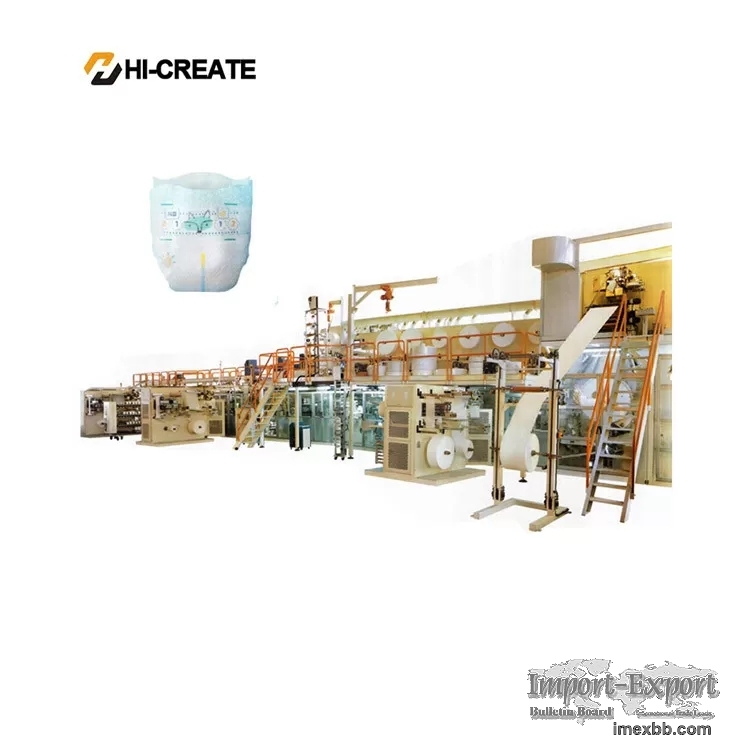

CE UL Full Servo Baby Diaper Manufacturing Machine

Product Characters:

1. Full-servo auto-controlling system with high automation while the machine
can be also upgraded as per customers’ reasonable requirement.

2. Under European CE standard designing, passed the CE certificate, electric
parts under CE or UL quality certification, with safety protection unit,
such as, safety door and emergency stop and so on.

3. Other optional functions can be chosen by customers’ requirements.

4. The machine is attached with fully automatic packing machine(stacker),
make packing simpler and save labor force.

5. Machine equipped with production door.

6. Touchable Screen:Machine switch on/off,running speed,time,counting
pieces,parameter setting,alarm,error display,.error enquiry(functions
setting appear on screen are different according to different machine type).

Main Product Features:

1. Cell mill;

2. Drum forming;

3. Tension of the tissue paper & spandex controlled by torque control speed;

4. Servo inverter optional governor adopted for main machine drive;

5. Constant tension unwinding system & auto splicer;

6. Rotary bodies adjustable during operation;

7. PLC drive system;

8. Touch screen for man-machine conversation;

9. New mechanism of waist lamination;

10. Whole welded construction for machine frame;

11. Finished products output in line automatically;

12. Safety doors equipped at the operating side.

Main Technical Parameters:

Model HC-TP-FS-06
Electric Power Supply 3 phase/380V/50Hz
Total Power 270kw
Pass Rate ≥97%
Production Speed 400pcs/min
Outline Dimension(m) 23*7*2.5 (L*W*H)

Main Structural Device:

1. Pulverizing device;

2. SAP applying device;

3. Drum forming device;

4. Tissue paper wrapping device;

5. Core compacting device;

6. Acquisition layer splitting device;

7. Inner cutting device;

8. Elastic waist applying device;

9. Protective cuff laminating device;

10. Elastic waist applying device;

11. Spandex splitting device;

12. Pinch roll transmit device;

13. Outer cutting device;

14. Waist laminating device;

15. Safty doors;

16. Waste rejecting device;

17. Output & transmit device.
