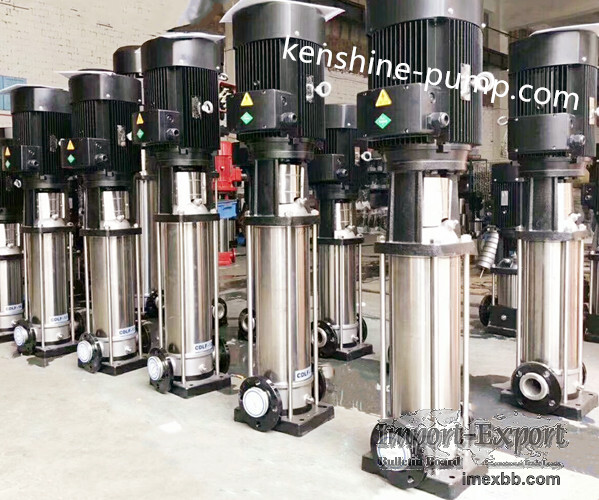

CDLF /QDLF Vertical stainless steel multistage centrifugal water pump

QDLF stainless steel multistage vertical centrifugal pump is a multi-functional
product of non-self-priming multi-stage centrifugal pump with standard motor. The
motor shaft is directly connected to the pump head by a shaft coupling. And the
pull rod bolts fixes the pressure cylinder and the flow components between the pump
head and the inlet and outlet water section. The pump inlet and outlet are on the
same line at the bottom of the pump.
The pump can be equipped with intelligent protector according to the needs so as to
effectively protect the pump from dry rotation, phase loss and overload.
QDLF stainless steel multistage vertical centrifugal pump is widely used to
transport a wide variety of media from tap water to industrial liquids with
different temperature, flow and pressure ranges.
QDL vertical multistage centrifugal pump is for non-corrosive liquids and QDLF
stainless steel pump is for mildly corrosive liquids.
QDLF pumps are widely used in many industries, for example, water supply: water
plant filtration and transmission, water plant sub-district feed, main
supercharging, high-rise building supercharging; Irrigation: farmland irrigation,
sprinkler irrigation, drip irrigation; Industrial liquid transport: cooling and air
conditioning systems, boiler feed and condensing systems, machine tools, acid and
alkali; Water treatment: ultrafiltration system, reverse osmosis system,
distillation system, separator, swimming pool; Industrial pressurization: process
water system, cleaning system, high-pressure flushing system, fire protection
system, etc.
Operating conditions of QDLF pump:
1. Thin, clean, non-flammable and explosive liquid without solid particles or
fibers.
2. Liquid temperature: normal temperature: -15℃ to +70℃; hot water: +70℃ to
+120℃
3. Ambient temperature: maximum +40℃
4. Altitude: the maximum is 1000m

Minimum Order: 1 sets
