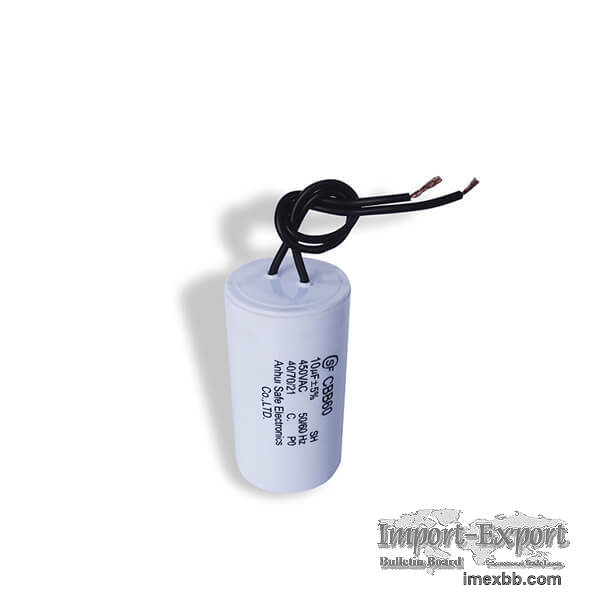

CBB60 Motor Run Capacitor with 2 Wires

cbb60 mkp capacitor
cbb60 start capacitor / start capacitor cbb60
motor capacitor cbb60 / motor capacitor cbb60 sh
cbb60 capacitor 100uf

CBB60A capacitors utilize low-loss metalized polypropylene film for dielectric.
The CBB60 motor run capacitors are encapsulated with resin and housed in a
self-extinguishing plastic case which allows for superior reliability and a
high mechanical shock and vibration strength. The CBB60 series of motor run
capacitors is ideal for start and run applications in single-phase asynchronous
motors and general A.C. applications at industrial frequencies. The motor run
capacitor is small in bulk, has long life-span and good self-healing
characteristic.

We adhere to the business model of independent production and fast delivery to
reduce your procurement costs and save your procurement time.

CBB60 Run Capacitor with 2 Wires Specification
Reference standards GB/T 3667.1（ IEC60252-1）
Climatic category 40 / 70 / 21, 40 / 85 / 21
Class of operation Class B (10000h) Class C (3000h)
Class of safety protection S0 /S3
Voltage range 250VAC, 370VAC, 440VAC, 450VAC
Capacitance range 1～60μF
Capacitance tolerance ± 5%, ± 10%, ± 15%
Dissipation factor 20 x10-4 (100Hz, 20°C)
Test voltage terminal to terminal UTT 2Un for 2 seconds
Test voltage terminal to case UTC (2Un+1000) VAC or 2000VAC- 50Hz for 60
seconds
Insulation resistance ≥3000s (100Hz, 20°C, 1min)

CBB60 Motor Run Capacitor Dimensions(mm)：
Specifications Routine With screws or pins
450VAC 250VAC 450VAC 250VAC
1μF φ26*52 φ26*52 φ30*52 φ30*52
2μF φ26*52 φ26*52 φ30*52 φ30*52
2.5μF φ26*52 φ26*52 φ30*52 φ30*52
3μF φ26*52 φ26*52 φ30*52 φ30*52
3.5μF φ26*52 φ26*52 φ30*59 φ30*52
4μF φ28.5*55 φ26*52 φ35*62 φ30*52
4.5μF φ28.5*55 φ26*52 φ35*62 φ30*52
5μF φ28.5*55 φ26*52 φ35*62 φ30*52
5.5μF φ34*62 φ26*52 φ35*62 φ30*52
6μF φ34*62 φ26*52 φ35*62 φ30*52
6.5μF φ34*62 φ26*52 φ35*62 φ30*52
7μF φ34*62 φ26*52 φ35*62 φ30*52
8μF φ34*62 φ26*52 φ35*62 φ30*52
9μF φ34*62 φ26*52 φ35*62 φ30*52
10μF φ34*62 φ26*52 φ35*72 φ30*52
12μF φ37*73 φ26*52 φ35*72 φ30*61
14μF φ37*73 φ34*62 φ40*72 φ30*61
15μF φ37*73 φ34*62 φ40*72 φ30*61
16μF φ37*73 φ34*62 φ40*72 φ30*61
18μF φ37*73 φ34*62 φ40*72 φ35*67
20μF φ40*72 φ34*62 φ40*72 φ35*67
25μF φ42*80 φ42*62 φ40*72 φ35*67
30μF φ42*90 φ40*72 φ45*95 φ40*72
35μF φ45*90 φ40*72 φ45*95 φ40*72
40μF φ50*100 φ42*90 φ50*110 φ40*97
45μF φ50*100 φ42*90 φ50*110 φ40*97
50μF φ50*100 φ42*90 φ50*120 φ40*97
60μF φ50*115 φ42*90 φ50*120 φ40*97

Applications of CBB60 Motor Run Capacitor with 2 Wires
The CBB60 mkp capacitor with 2 wires is commonly used in single-phase AC
motors, such as air conditioners, refrigerators, and washing machines, to
improve the power factor and efficiency of the motor. Here are some
applications of CBB60 motor run capacitor with 2 wires:

Air Conditioning Units: motor capacitor CBB60 sh with 2 wires is widely used in
air conditioning units to enhance the motor's efficiency and power factor. It
helps the motor start smoothly and operate at a consistent speed.

Refrigerators: Refrigerators and freezers also use CBB60 motor run capacitors
with 2 wires to improve the power factor and efficiency of the compressor
motor.

Washing Machines: CBB60 motor run capacitors with 2 wires are used in washing
machine motors to help the motor start smoothly and run efficiently. It also
helps to reduce power consumption.

Water Pumps: CBB60 motor run capacitors with 2 wires are used in single-phase
water pumps to improve the starting torque and efficiency of the motor.

Fans: CBB60 motor run capacitors with 2 wires are also used in fans to improve
the starting torque and efficiency of the motor. It helps the motor to start
quickly and run at a consistent speed.

Overall, the CBB60 capacitor 100uf with 2 wires is a versatile component that
can be used in a wide range of applications to improve motor efficiency and
performance.

CBB60 Motor Run Capacitor with 2 Wires Features
Widely applied to the starting and running of AC single-phase motors at
50Hz/60Hz frequency power.

Self-healing property.

Good stability and reliability.

As one of capacitor manufacturers in china, we can offer different types of
related products for sale, anything you need, please contact us.

Minimum Order: 1 pieces
