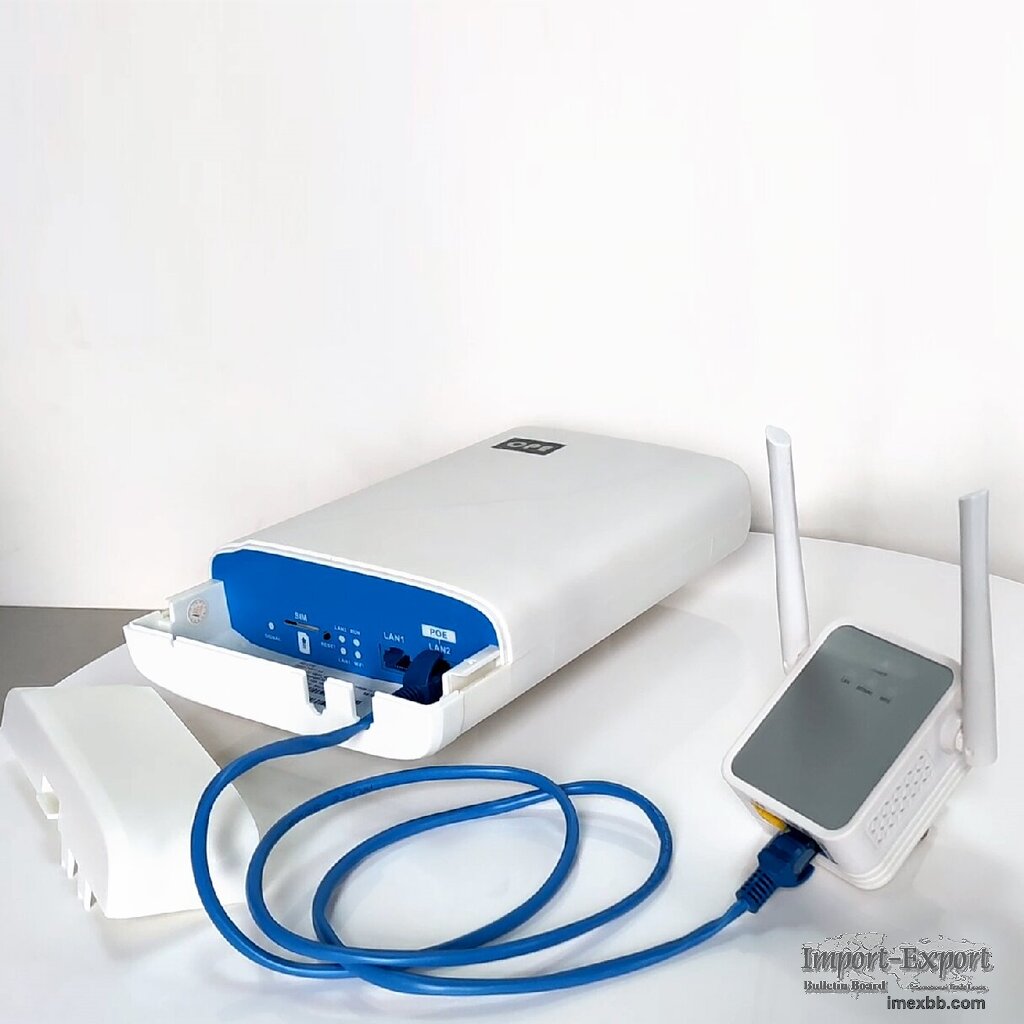

Cat 4 POE 24V/1A waterproof outdoor lte router with wifi extender

Description Cat 4 POE 24V/1A waterproof outdoor lte router with wifi extender
Item no. HY8172+HY8760
CPU ASR 1802S+MT7628N
Interface 1 WAN(POE 24V/1A)+1 LAN
Button Reset
Power Suppply DC 12V/1A
DDR/SPI 64MBytes/16MBytes
SIM Card 2 FF
Software APN Setting、Device Settings、Routing Setting , s、
Firewall Settings
System Windows XP, Windows Vista, Windows 7, Windows 10, MAC, Linux
Browser IE (7.0 and later), Firefox (3.0 and later),
Safari (4.0 and later), Opera (10.0 and later), Chrome (10.0 and later)
LED PWR，WiFi，Internet，Interface，Signal Strength LED
ML352-AU FDD B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66; TDD B38/B40/B41; WCDMA
B1/B2/B4/B5/B8
HY8760
Chipset MT7628KN
SPI FLASH 1MB
RAM 8MB
Protocol IEEE 802.11n; IEEE 802.11g; IEEE 802.11b
Transmit power 802.11b   18dBm±2dBm;
802.11g   17dBm±2 , dBm;
802.11n   16dBm±2dBm;
Receiving se , nsitivity 802.11b: -90dBm@10% PER
802.11g: -74dBm@10%

Minimum Order: 1 pieces
