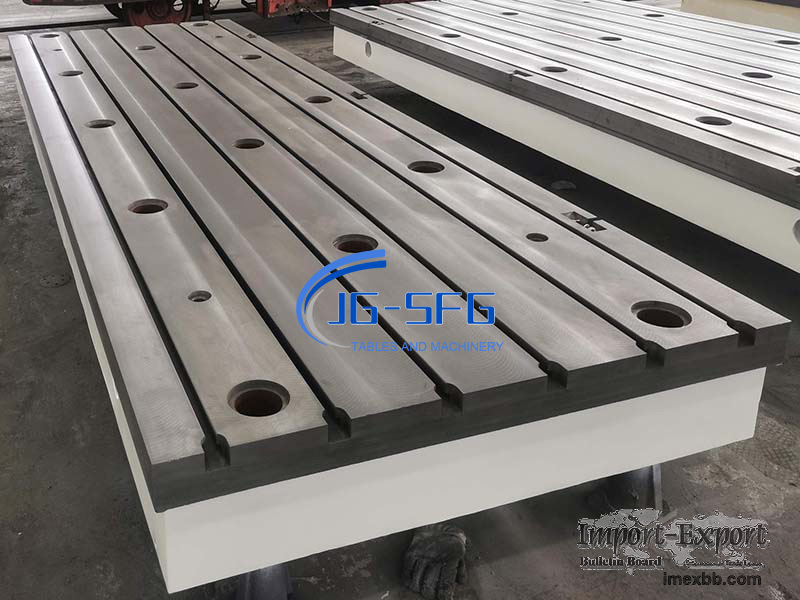

Cast Iron T-slotted Floor Plates

JG-SFG Cast Iron T-slotted Floor Plates is made from high-strength grey cast
iron GG20-GG30 (HT200-HT300). These plates offer flexible universal clamping
possibilities for all types of work pieces. Each clamping plate is manufactured
individually according to the customer's requirements and is therefore unique.

JG-SFG plates are specially configured to suit customer requirements. The
dimensions of the floor plates can be individually adapted depending on the
area of application. This way customers can be sure that the floor plates are
perfectly tailored to their needs. The number and size of the T-slots can also
be specially adapted to customers’ needs. This ensures optimum fixing of the
workpieces.

Standard plates have a Brinell hardness of between 180–200 HB and a tensile
strength of 260–300 N/mm². Surface machined to DIN876 and T-slots machined
to DIN650.

Standard T-slot sizes 18,20, 22, 28, 32 or 36 can be manufactured according to
DIN 650, with fits ranging from H 7 to H 12. The popular distance between T-
slots is 200 or 250 mm. T-slots with special dimensions are available upon
request.

The number and shape of the ribs can be adjusted to suit the specified loading
requirements. The size of the T-slots in the plates is determined by the
customer’s requirements in strength, tensile and compression.

JG-SFG manufacture any T-slotted floor plates size, shape and T-
slot combination to your specification, in cast iron. Nevertheless, standard
floor plates are available in a large range of width and length combinations.
Floor plates can be assembled to achieve larger plate areas.

STANDARD PLATE WIDTH (in mm):
1000, 1500, 2000, 2500 and 3000 (mm)

STANDARD PLATE LENGTH (in mm):
1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500,
8000 (mm)

Minimum Order: 1 sets
