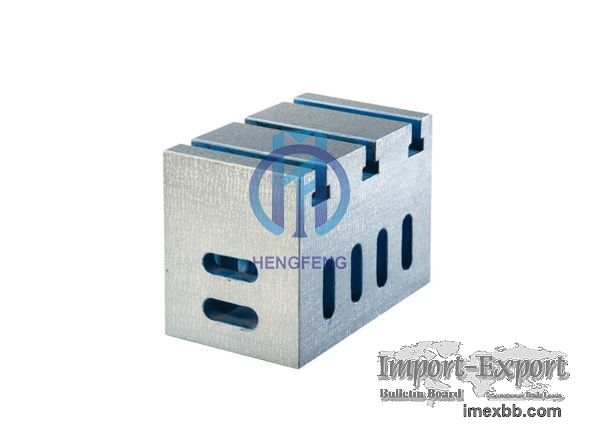

Cast Iron Box Angle Plate

Cast Iron Box Angle Plates are made of high tensile cast iron properly seasoned
against distortion, are used as a versatile tool for layout machine set – ups,
tooling and inspection of large jobs. They can also be used as right angles and
squares. They are made and used either in single or in combination for
comprehensive applications. They meet or exceed the requirements set forth by
various National and International Standards.

OEM or ODM service: we offer a wide range of services from standard Cast Iron
Square Boxes/Blocks to customized and specifically designed as per loading
requirement.
Calibration Certificate: EX-works inspection reports offered by our Quality
Inspection Department are included with every surface plate, “Calibration
Certificate” is available upon request for an additional charge.
Delivery Costs: calculated during the checkout process.

Cast Iron Square Box SPECIFICATION:
Material: HT200-300
Specification: customize
Surface: flat / tapped holes / T-slots / cored elongated slots
Hardness of the working surface: HB160-240
Surface treatment: hand-scraped or finish-milling
Surface coating: pickling oil and plastic-lined or covered with anticorrosion
paint
Heat-treated: available for stress relief, stability and wear resistance
Precision grade: 2-3
Packaging: anti-rust packing+ plywood box
Warranty: 1 year

Features of Cast Iron Square Box:
• Made from high quality cast iron.
• Heat-treated for stress relief.
• Offered in two grades of accuracies – Grades: 2 & 3.
• Machined T-slots and cored elongated slots provided to facilitate clamping.
• Special sizes as per customer’s specific requirement also offered.
• Offered as matched pair.
These features make HENGFENG one of the best Cast Iron Square Block
manufacturers in the industry.

*Custom - Designed specifically for your application. Some options include T-
slots, custom hole sizes, custom patterns. Contact us for more information.
