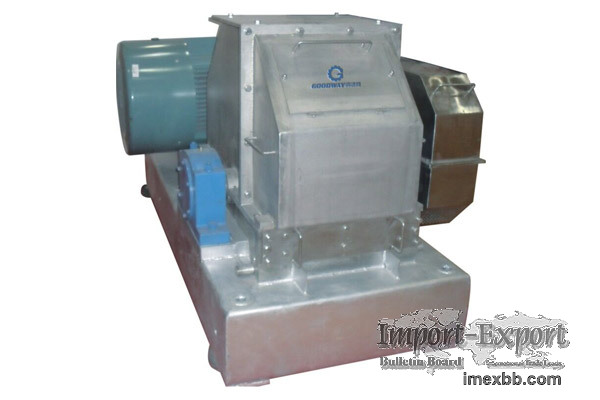

Cassava Starch Extraction Machine

cassava machine cassava processing machine cassava starch extraction machine

Features of Cassava Starch Extraction Machine
Processing Capacity: 15-35Tons/hour
Application Scope: Crushing the cassava into the slurry
Product Introduction: Cassava rasper machine, rasper crusher, cassava crusher
machine, cassava crushing machine for cassava starch and cassava flour
processing

1. All parts in contact with raw material are made of food-grade stainless
steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform
particle, and high starch ionization rate.
3. The rotor is calibrated with the international advanced dynamic-balance
instrument, meeting the G1 standard.
4. Components(bearings for example) are imported from Europe with longer
service life.
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by the special process, with
higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having
excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade
changing.
Product Structure of Cassava Starch Extraction Machine
The complete machine consists of a rotor, rasping blade, engine base, upper
cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed
on.
2. The rotor is made of special stainless steel, uniform grooves on the surface
to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a
saw blade.
4. 2 combined rasping blade is equipped on both sides of the rotor, which could
achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets
of tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover, and
side cover.
7. Use Sweden SKF Bearings and German opittle belt.
8. The motor drives rotor by the belt, which is protected by the sealed
protective cover.
Technical Parameters of Cassava Starch Extraction Machine
Model No. GD-CM-300 GD-CM-400 GD-CM-500
Rotating Speed(r/min) 2100 2100 2100
Rotor Width(mm) 300 400 500
Motor Power(kW) 90~110 132~160 160~200
Capacity(t/h) 15~18 20~25 30~35
Weight(kg) 2500 2700 3500
Dimension(mm) 2200×1000×1200 2200×1200×1200
2200×1300×1200

Nanyang Goodway Machinery & Equipment Co., Ltd. is one of professional rotary
vacuum filter manufacturers, we provide casdewatering press for sale, potato
starch machine, extraction of starch from cassava, starch extraction methods
and etc. Want to know how to extract starch from cassava? Please contact us.

Minimum Order: 1 sets
