Cascading Fiber POE Switch Full Gigabit 4 POE Ethernet 2 Optical Port

Cascading POE Fiber Switch Full Gigabit 4 POE Ethernet and 2 Optical Ports



Technical Parameters

Network Ports Four 10/100/1000Base-T(X) adaptive POE Ethernet port
Network Ports Properties RJ45
Network Ports protocol IEEE802.3,IEEE802.3U,IEEE802.3X protocol
Ports Features Support half-duplex, full-duplex, auto-negotiation mode
Ports Features Support MDI/MDI-X adaptation
Delay ﹤9.6μS
Bit Error Rate ﹤1/1000000000
Backplane Bandwidth 12G
Cache 1M
MAC address table 1K
Power consumption ≤5W
Transmission Rate 10/100/1000Mbps
Optical Fiber Ports 2 10/100/1000Mbps Single Mode FC Optical Fiber Ports
Optical Fiber Ports Properties Wave Length:1310/1550nm
Transmission Distance 20-100KM
POE protocol IEEE802.3af/at
Pin Definition V+,V+,V-,V- Corresponding to 1,2,3,6
Output Power 15.4W
Rated Input voltage +44~+57VDC
Operating Temperature -40 ~ 85℃

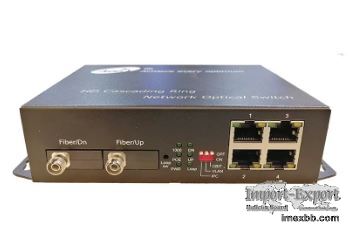

Cascading Fiber POE Switch Full Gigabit 4 POE Ethernet 2 Optical Port
Enlarge Click to Enlarge
