CARTON PACKAGING MACHINE

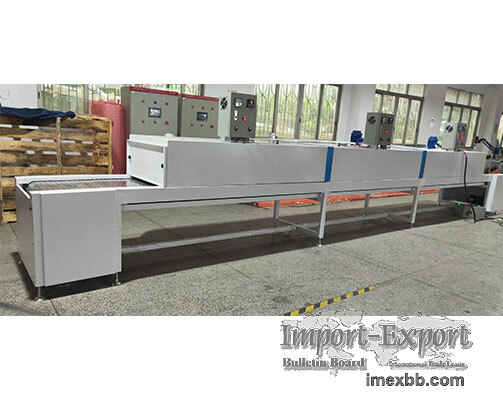

Packing Belt Conveyor
The principle of plate chain assembly line is to use the chain plate to drag
the workpiece for plane transmission movement to achieve the purpose of
production technology. The conveying is stable and there is no relative
movement between the material and the belt conveyor, which can avoid damage
to the conveyor. Low noise, Guonuo's metal belt conveyor is suitable for
creating a quiet working environment. Simple structure and easy maintenance.
Low energy consumption and low cost. Contact for quality metal separator
conveyor now!

ALUMINUM METAL CONVEYOR BELTS PROCESS SPECIFICATIONS AND PARAMETERS
1. The length of the line body is calculated according to the assembly process
arrangement of the product.

2. The height of the plate chain line is 2 meters, and the height of the
working table is determined by the height of the product.

3. Line width: 350-1500mm, freely determined according to the product
specification.

4. Assembly line configuration:

(1) Fluorescent lamp

(2) Electric fan

(3) Air pipe is equipped with a quick interface

(4) Process drawing board

(5) Toolbox is equipped with a 220VAC power socket

(6) Steel chain

(7) Steel chain board

5. Power configuration: electromagnetic speed regulation or variable frequency
speed regulation control.

6. Conveying speed: 0.4-4m/min, which can be contacted and operated
intermittently.

7. The chain plate of our wire mesh chain conveyor can be made of plastic
steel, stainless steel, and other materials. In addition to the transportation
of ordinary materials, it can also meet the requirements of food,
pharmaceutical, daily chemical, electronic and electrical appliances, and other
industries.

8. The structural forms of chain plate line include: straightness, turning,
climbing, and other forms. A lifting baffle and other accessories can be added
to meet various process requirements.

9. The assembly line adopts the combined assembly mode, and the number of
stations can be set according to the process requirements.

10. The station is equipped with a power socket, toolbox, material box, etc.,
which makes the whole process fast and orderly.

Now the price of automatic sleeve wrapping machine is low, if you have needs,
please contact us.

Minimum Order: 30 sets
