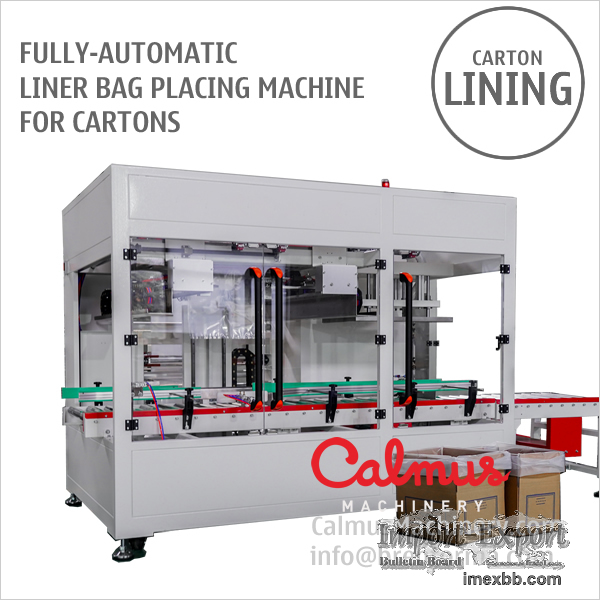

Carton Box Case Liner Bag Placing Machine

Carton liner placing machine for inserting bags in boxes by one each. This China-
made fully-automatic liner placer cuts and seals film as a bag from a roll stock,
inserts it in an erected carton, opens and cuffs the bag over the carton top
flaps, blows air to extend the bag to fit the internal wall of box better. The
liner bag placing machine reduces labor and material costs, is simple to operate
and easy to adjust.

This is an ideal machine for bulk box packaging of bread rolls, edible oil and
fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures,
golfs and other. It will be more efficient and save more labor if this poly bag
inserter works with a box former as the combination can be an automatic lined
carton forming line.

Specifications:
Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be
customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)

We are also able to manufacture high-speed carton liner placing machine with 12
cartons/minute.

Minimum Order: 1 pieces
