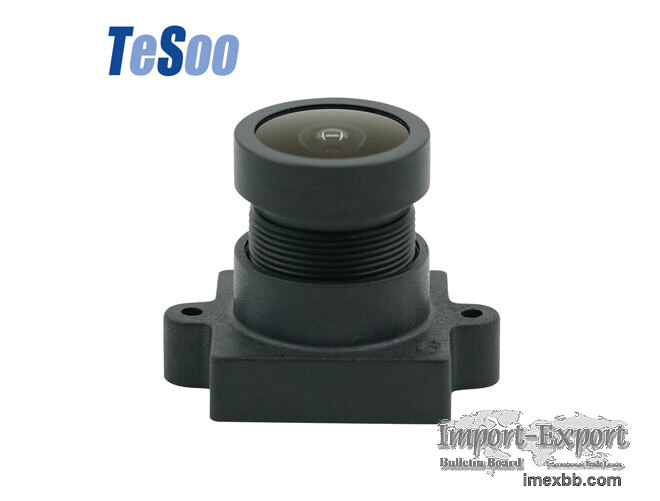

Car DVR Lens

Car DVR lens is universally used for car camera bracket reversing rearview
image driving recorders. The steps of determining the assembly position of the
car DVR lens include: selecting a suitable camera lens; obtaining the field of
view data of the lens and the A-side data of the car; and performing data
simulation on the acquired data to determine the assembly position. After
adjusting the position of the car DVR lens, the angle between the camera and
the horizontal plane is also adjusted to make it within the assembly tolerance
range. The steps of adjusting the position of the car DVR lens correction
device include: locating the most protruding part of the rear bumper of the
car; adjusting the longitudinal zero position of the camera correction device
so that the longitudinal zero coordinates of the camera correction device is
located perpendicular to the most protruding part of the rear bumper online.
Welcome to buy the qualified car lens from Tesoo.

How To Choose Car DVR Lens?

Three Important Factors To Choose Superior Car DVR Lens
Viewing angle: the larger the car DVR lens's viewing angle, the wider range
that can be recorded. Now the mainstream car DVR has a viewing angle of 120
degrees or more, and a better model can reach 170 degrees, and there are 360-
degree models with no dead ends.

Image quality: image quality of car dvr lens depends on lens quality, sensor
quality, and system configuration. Of course, environmental factors such as
light intensity, angle, and vehicle speed will affect the image quality. Under
the same conditions, the higher the pixel, the better.

Night vision ability: the quality of night vision mainly depends on two
factors: aperture size; sensor ISO value range. The larger the aperture and the
higher the ISO, the more sensitive to light, and bright video can be recorded
in the evening or even at night.

Specifications of Car DVR Lens

ED (Extra-Low Dispersion) Glass

An optical glass developed by Tesoo that is used with normal optical glass in
telephoto lenses to obtain optimum correction of chromatic aberrations.

PART No. TS-2717O-A00
TTL 16.8mm
EFL 3.2mm
F/NO F2.0
MBFL 5.06mm
SENSOR SIZE 1/2.7"
FOV
(D) 152°
(H) 119°
(V) 60°
MAX IMAGE CIRCLE φ6.8mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONS φ14*13.1
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2714P-A00
TTL 14mm
EFL 2.9mm
F/NO F2.4
MBFL 4.31mm
SENSOR SIZE 1/2.7"
FOV
(D) 163°
(H) 132°
(V) 66°
MAX IMAGE CIRCLE φ7.0mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONS φ14*9.7
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2718O-A00
TTL 18mm
EFL 3.3mm
F/NO F2.0
MBFL 4.31mm
SENSOR SIZE 1/2.7"
FOV
(D) 150°
(H) 119°
(V) 60°
MAX IMAGE CIRCLE φ6.8mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONS φ14*13.2
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2721N-C00
TTL 21mm
EFL 3.3mm
F/NO F2.2
MBFL 5.1mm
SENSOR SIZE 1/2.7"
FOV
(D) 140°
(H) 110°
(V) 68°
MAX IMAGE CIRCLE φ6.8mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONS φ14*15.9
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

Technology Of Car DVR Lens

ED (Extra-Low Dispersion) Glass

An optical glass developed by Tesoo that is used with normal optical glass in
telephoto lenses to obtain optimum correction of chromatic aberrations.

As one of lens manufacturers, we have types of lens for sale, if you have
needs, please contact us.

Minimum Order: 100000 pieces
