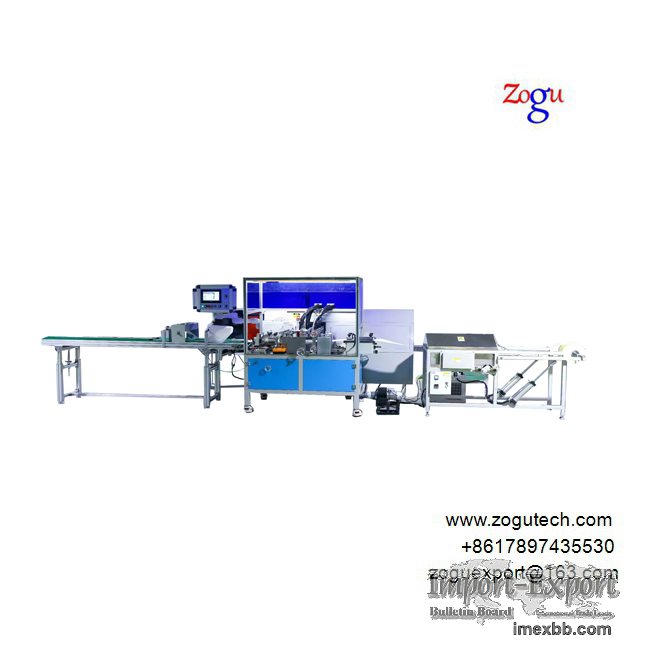

car air filter making machine

Car air filter making machines - Car Panel Air Filter Making Machines

automatic laser cutter filter paper pleating machine


automatic laser cutter filter paper pleating machine

square filter paper pleating machine

square PU glue machine




multi shape PU glue machine

Oval oven- with air cylinder

Oval oven- simple type



trimming machine
Polygon filter angle cutter

reinforcing glue machine

trimming machine

Car Panel Air Filter Paper Pleating Machine

Type 1: Automatic laser cutting filter paper pleating machine, it could online
cutting various special-shaped pleated filter paper, high speed ,high output，
easy to operation.

Laser cutting type panel filter paper pleating machine Full line:

(1) De-coiler

(2) heating and wetting device

(3)hot glue machine

(4) laser cutter

(5) main rotary pleating machine

(6) air-dry fan device

(7) conveyor belt shelf

(8) PLC control system



Type

Automatic laser cutting filter paper pleating machine

Cutting

Online multi-functional cutting

Cutting way

Lather cutting

Lather cutting protection

With full-enclosed structure protection cover

Cutting plane

Adjustable, bevel cutting plane, adjustable flower pattern (square, rhombus,
etc.),

which is irreplaceable by blade cutting.

mold

Standard width: 300mm/ 350mm/400mm/ 450mm

pleat height: 20-60mm

Water cooling

With laser source water cooling system

Control system

PLC control

Additional function

With conveyor belt which can increase the function of online back muscles

Application

Air filter paper pleating and cutting, make square, rhombus, round, etc.


Type 2: Normal panel air filter paper pleating machine, it use for pleat square
shape, rectanguler shape pleated fitler paper, it could manual cutting by filter
paper angle cutter for make polygon shape panel filters.

Normal panel air filter paper pleating machine full line:

(1) De-coiler

(2) heating and wetting device

(3) hot melt glue machine

(4) main pleating machine

(5) air dry fan device

(6) convyor belt shelf

(7) PLC control system

Type

Normal panel air filter paper pleating machine

Pleating height

20-48mm/48-60mm

Max pleating width

350mm

Pleating speed

15 pleat /second

Power of gluing device

3+3kw

Power of humidification

2kw

Conveyor

0.25kw

M , ain motor

1.5kw

voltage

380v, 50hz, 3 phase or as request

www.zogutech.com +8617897435530 www.zogutech.com

Minimum Order: 1 sets
