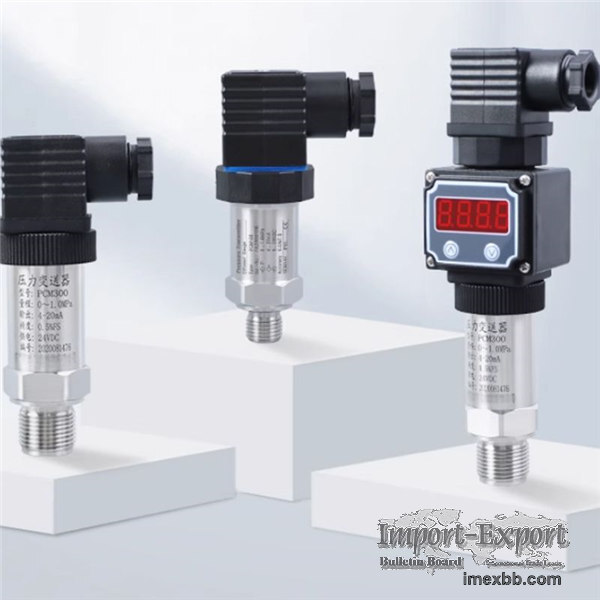

Capsule Type Pressure Transmitter

To convert measured pressure values into standard industrial signals, such as
4-20mA, 0-20mA, 0-5V, 0-10V and so on.The principle of pressure transmitter is
that the internal pressure sensor pressure generated weak electrical signal
through a series of processing (op amp, A / D conversion) eventually become a
standard signal.
Capsule Type Pressure Transmitter Advantage
High precision, small size and light weight;
Extremely high temperature performance, full scale temperature compensation;
Stainless steel laser welding medium isolation;
Digital intelligent chip, reliable circuit and fast response.
Specifications
Parameter Description
Standard range -100KPa~0~200MPa
Output 0-10V,4-20mA,1-5V
Protocol HART ( optional)
Accuracy ± 0.25%/ ±0.5%
Zero error ＜±0.25%FS
Long term stability ＜±0.25%FS/year
Working temp -40~200℃
Shell material 304SS,316SS
Voltage 12~36V
Explosion EXdIIBT6
Protection IP65,IP67
Process connection Thread or Sanitary Type
