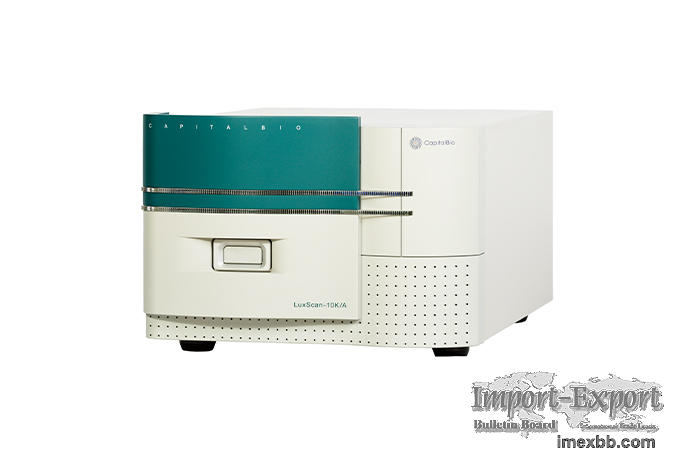

CapitalBio® Microarray Scanner LuxScan™10K

The CapitalBio LuxScan™ 10K dna microarray scanner is a compact high
performance system for microarray imaging and the analysis of DNA, protein, and
cell arrays. Its advanced systems for optics, signal processing, and motion
control provide superior scan accuracy and high detection sensitivity over a
wide linear dynamic range. With the optimized signal acquisition and processing
elements, it is ideal for profiling high-density spotted microarrays.

LuxScan™ 10K-A has two excitation lasers (532nm and 635nm) and scans
sequentially, avoiding potential signal crosstalk for dual labeled arrays.

LuxScan™ 10K-B comes with either a 532nm or 635nm excitation laser. It has a
National Registration Certificate for Medical Devices and is suitable for
diagnostic uses.
Features And Advantages Of CapitalBio® Microarray Scanner LuxScan™10K
Proprietary confocal optical design

Sequential scanning, without cross-talk between channels

High resolution and high sensitivity

Laser intensity and PMT are continuously adjustable

Flexibility in dye selection

Image quality & signal to noise ratio (SNR) superior to equivalent instruments

Remarkably compact, the bench-top footprint of 54 cm × 36 cm

Easy-to-use, powerful integrated acquisition, and analysis software - SpotData™
Pro 3.0 with three licenses for each instrument, and free upgrades for the
first 5 years

LuxScans are available in U.S. standard and European slide formats

LuxScan™ 10K Autofocus software allows users easily readjust the altered focus
due to rough shipment and for its long term maintenance
Specification Of CapitalBio® microarray reader LuxScan™10K

Features Parameters
cnip Formats: Standard USA Slides (76.2士0.5)×(25.4土0.25)× (1.0土o.1)
mm
or European slides versions (76.2士0.5)×(25.6土0.25)×(1.0土o.i1) mm
Maximum Scan Area 22 mm x 72 mm
Excitation wavelength 532 nm and/or 635 nm
Emission wavelength 570土10 nm,675土10 nm (expandable to 6 types)
Applicable Fluorescence Dyes cy3.cy5, etc.
scan Resolution user-selectable: 5,10,20,40 um
sensitivity 0.1 chromophores / um2(cpsm)(cy3)
scan speed 8 mins / chip (10 um resolution)
Dynamic Range 104(16 bit)
Repeatability 95%
Laser Power settings 5-100 % continuously adjustable
PMT Adjustment 450-950 continuously adjustable
Focus Distance 土250 um
lmage File Format TIFF.BMP, JPG, RAW
voltage Ac l1o v/Ac 220v
Power 75 watts
size (w x D*H) 360 mm x 540 mm x 220 mm (14.2 in x 21.3 in x 8.7 in)
weight 40 kg (88 lb)

As one of the most professional biotech genetic sequencing companies, we
provide protein chip, life sciences instruments, etc. For more information,
please feel free to contact us!
