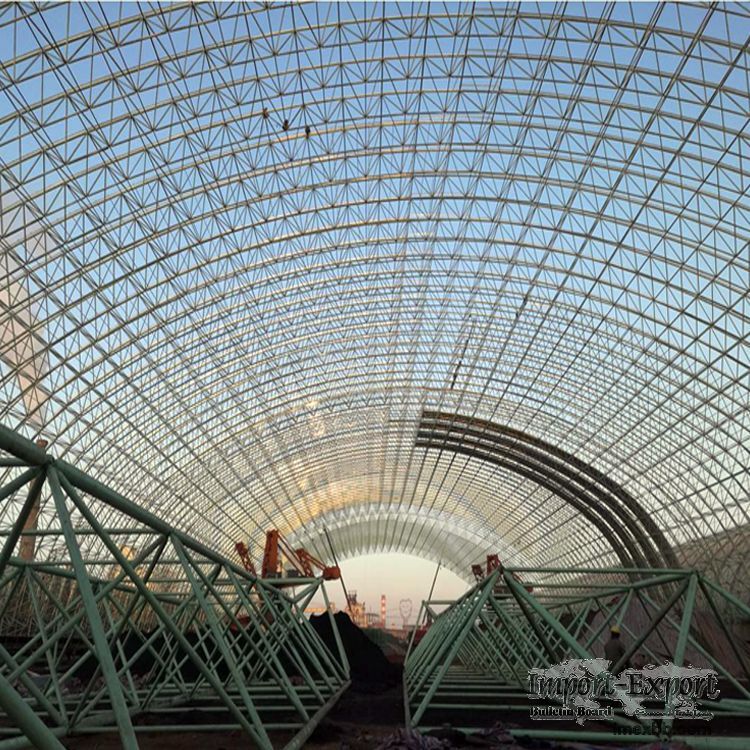

Cangzhou stockyard A, B spanning shed space frame project

A span of the primary stockyard: 760 meters long, the space frame projection
span is 112 meters, the projection area is 85,120 square meters, and the
expansion area is 125,000 square meters;
Primary stockyard B span: 760m long, 112m grid projection span, 85,120m2
projection area, 125,000m2 expansion area;

The structure and features of this project are as follows:
The raw material yard shed project is a closed cylindrical reticulated
shell shed, which adopts a multi-center cylindrical front-mounted quadrangular
pyramid bolt ball and a welded ball mixed node reticulated shell structure, and
the 1 axis and the 191 axis are closed by a steel truss structure.
The axial span of the space frame support is 102.4m, and the inner chord welded
ball rubber pad plate transition plate support is used to support the top of
the concrete stepped column. m, the total elevation of the space frame is
38.473m. The space frame length column spacing is 8m, the length space frame
size is 4.00m, the span direction space frame size is 4.194m, and the space
frame vector height is 4.00m.
The specifications of the engineering space frame members are: 88.5x4.00,
114x4.00, 140x4.00, 159x6.00, 159x8.00, 180x8.00, 180x10.0, 219x10.0, 219x12.0
in total 9 types; The ball specifications are BS130, BS150, BS180, BS200,
BS220, BS240, a total of 6 types, and the support adopts the welding ball with
the specification of WSR500x20. The total weight of the space frame is 8536
tons.
