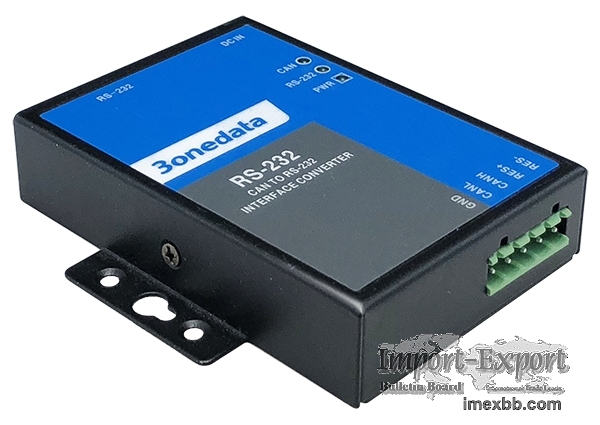

CAN232

CAN232
RS232 to can converter
Support data conversion between 1 CAN port and 1 RS-232 serial port
Support multiple conversion modes like transparent conversion, marked
transparent conversion, Modbus RTU protocol conversion and data conversion
CAN port support 2.5kbps-1000kbps baud rate
Support 9~48VDC wide voltage input
Support -40～75℃ wide operating temperature range

CAN232 is an interface serial to can bus converter that implements data
exchange between CAN-bus network and RS-232 device. It also supports data
exchange between CAN-bus network and Modbus RTU protocol. This product supports
1 CAN port and 1 RS-232 serial port, and adopts wall mounting which can meet
the requirements of different scenes.
CAN232 supports multiple conversion modes like transparent conversion, marked
transparent conversion, Modbus RTU protocol conversion and data conversion.
Otherwise, it provides matching CAN configuration tools which can achieve data
conversion between can bus to rs232 converter schematic serial port via easy
setting.
DIP switch could implement configuration mode enablement for device. Hardware
adopts fanless, low power consumption, wide temperature and voltage design and
has passed rigorous industrial standard tests, which could adapt to industrial
scene environment with harsh requirements for EMC. It can be widely used in PLC
control and management, building automation, healthcare automation system,
measuring instrument and environment monitoring system, etc.

If you want to know more types of poe ethernet switches, please contact us.

Founded in 2001 3onedata has been dedicated in industrial communication field
for over 20 years. We are a National High-tech Enterprise integrating with R&D,
manufacturing, marketing and service so as to provide complete business support
to our worldwide partners and customers.
